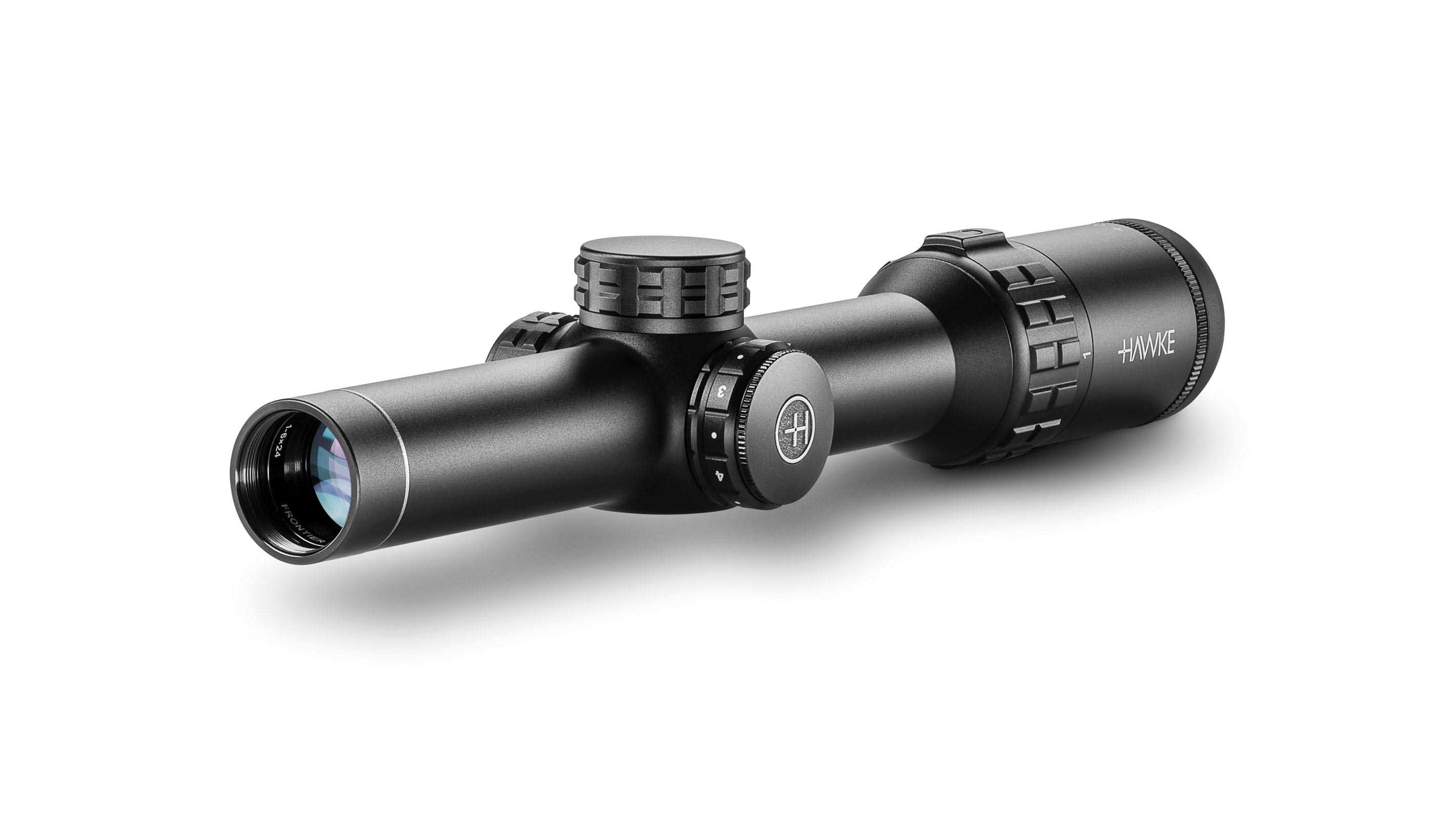

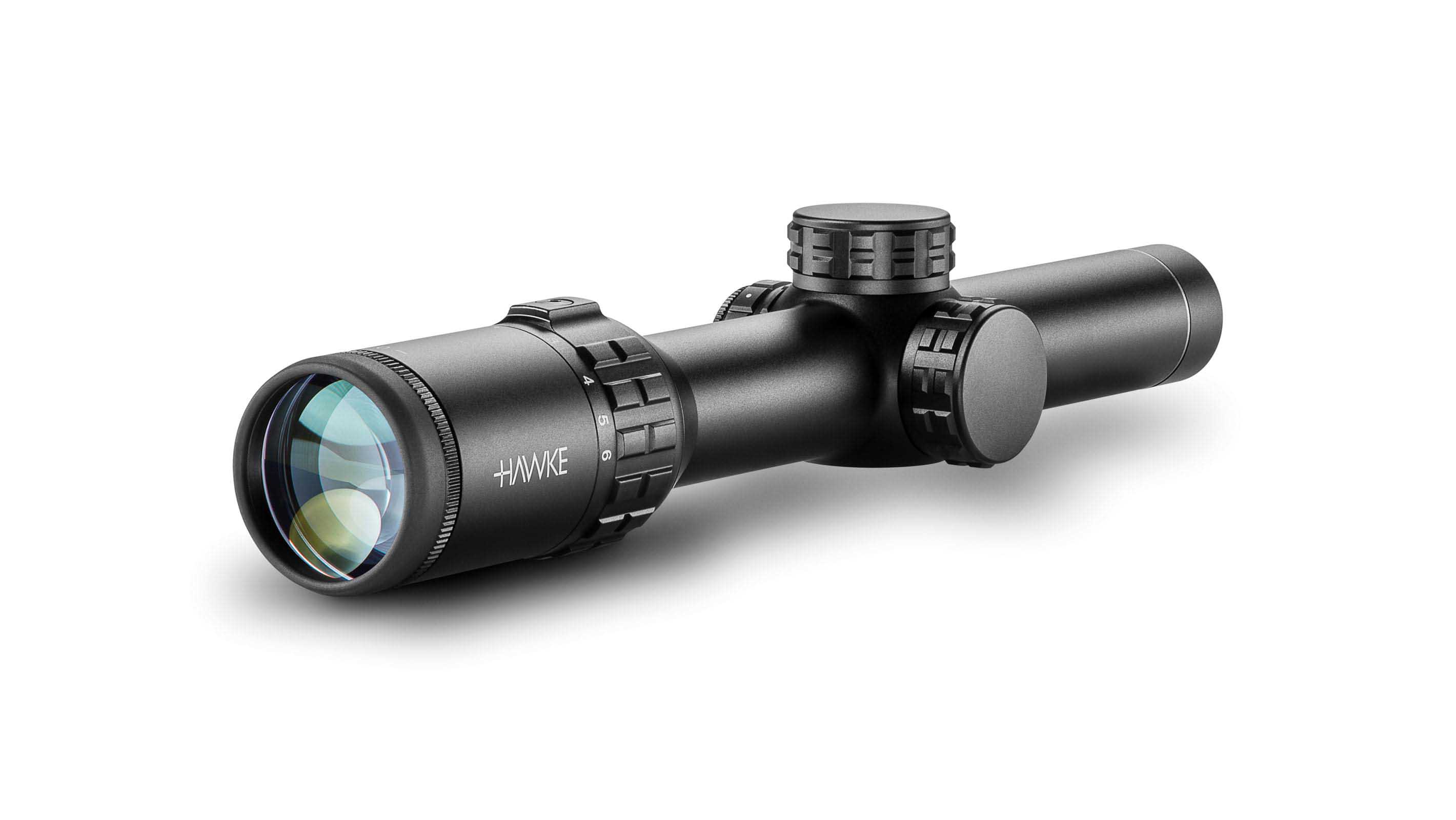

Frontier 30 1-6×24 Circle Dot
All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
Circle Dot (6x) Reticle
Designed specifically to help fast target acquisition during Battue and driven hunt. Features a bright red centre dot and illuminated circle for instant aim.
Key Features:
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Illumination
- Wide Angle FOV
- High volume eyebox
- 100mm eye relief
- Multi-LED high intensity reticle
- High grade, low dispersion Crown glass
- 21 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
- Supplied with Professional metal flip-up covers.
Specification
| Optical System | System H7 |
| Scope Tube | 30mm |
| Magnification | 1 – 6x |
| Objective Lens | 24mm |
| Reticle | Circle Dot |
| Illumination | 6 Levels (Red) |
| Illumination Control | Stepped Rheostat with Off Positions In-between |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 21 Layers |
| Field of View | 112.8 – 18.9ft @100yds / 37.6 – 6.3m @100m |
| Field of View (°) | 21.3 – 3.6 |
| Eye Relief | 4in / 102mm |
| PX / Focus | 100yds / 91m |
| Exit Pupil | 0.94 – 0.16″ / 24 – 4mm |
| Click Value | 1⁄2 MOA |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 140 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 140 MOA |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 11.1in / 283mm |
| Weight | 17.5oz / 495g |
