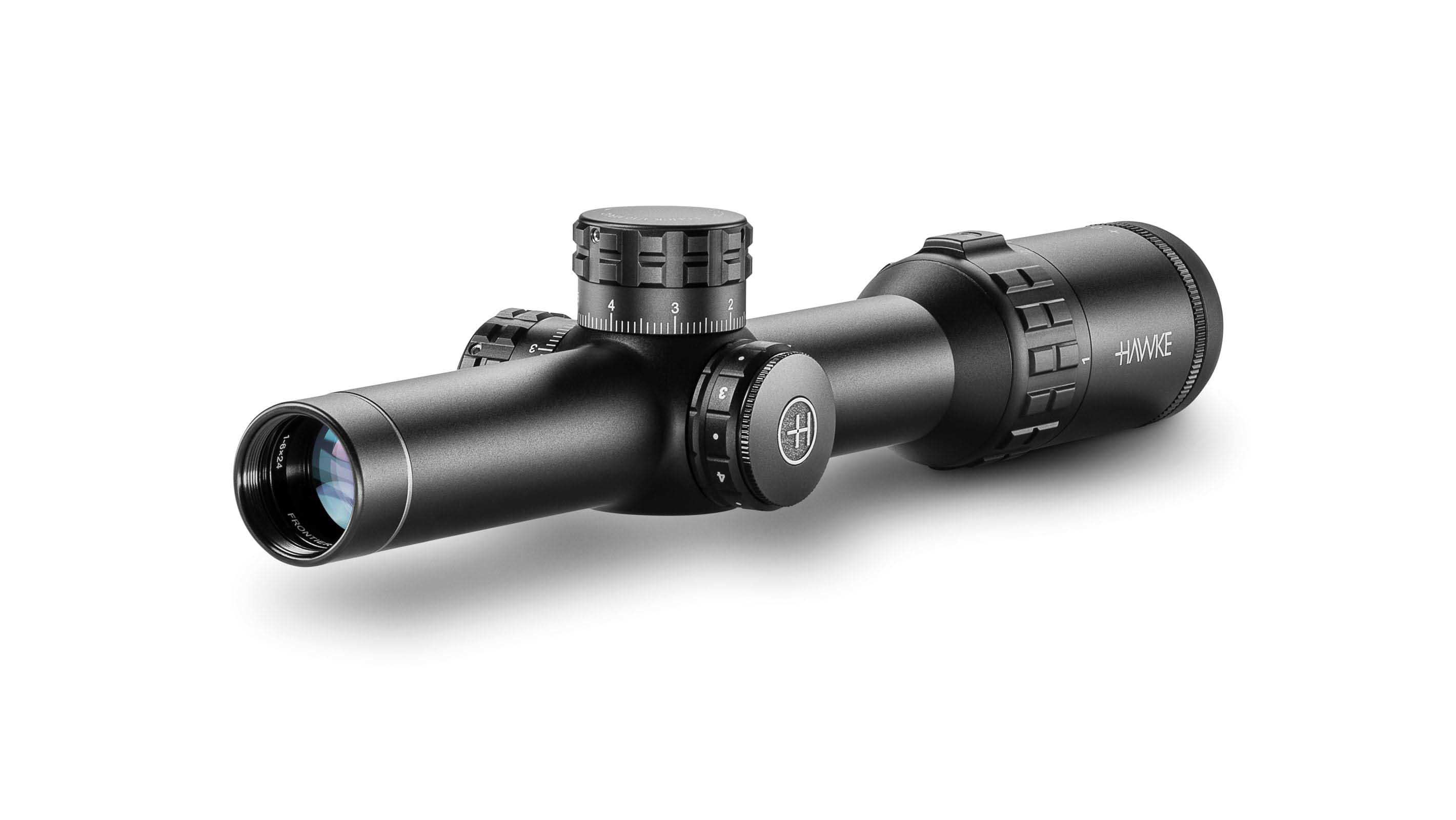

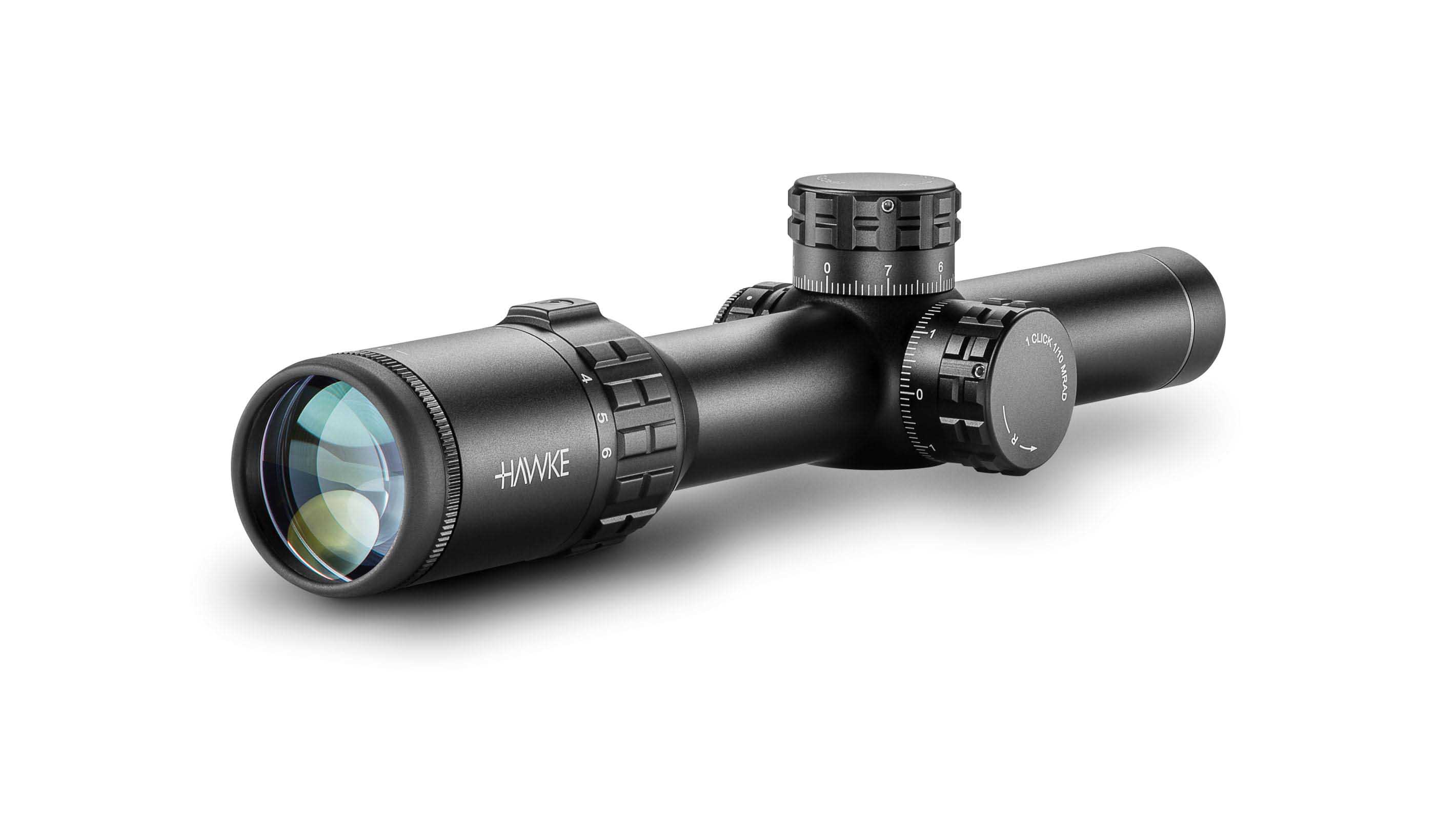

Frontier 30 1-6×24 Tactical Dot
All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
Tactical Dot (6x) Reticle
Glass etched with illuminated quick acquisition circle and central aim point. Additional aim points down to 10 mil spacing when on 6x magnification.
Key Features:
- Patented Exposed Zero Lock ‘n’ Stop elevation turret
- 30mm Mono-tube chassis
- Illumination
- Wide Angle FOV
- High volume eyebox
- 100mm eye relief
- Multi-LED high intensity reticle
- High grade, low dispersion Crown glass
- 21 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
- Supplied with Professional metal flip-up covers
Specification
| Optical System | System H7 |
| Scope Tube | 30mm |
| Magnification | 1 – 6x |
| Objective Lens | 24mm |
| Reticle | Tactical Dot (6x) |
| Illumination | 6 Levels (Red) |
| Illumination Control | Stepped Rheostat with Off Positions In-between |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 21 Layers |
| Field of View | 112.8 – 18.9ft @100yds / 37.6 – 6.3m @100m |
| Field of View (°) | 21.3 – 3.6 |
| Eye Relief | 4in / 102mm |
| PX / Focus | 100yds / 91m |
| Exit Pupil | 0.94 – 0.16″ / 24 – 4mm |
| Click Value | 1/10 MRAD |
| Turret Type (Elevation) | Zero Lock ‘n’ Stop, Exposed, Locking, Resettable |
| Elevation Turret Clicks (max) | 41 MRAD |
| Turret Type (Windage) | Exposed, Locking, Resettable |
| Windage Turret Clicks (max) | 41 MRAD |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 11.1in / 283mm |
| Weight | 18.1oz / 514g |
