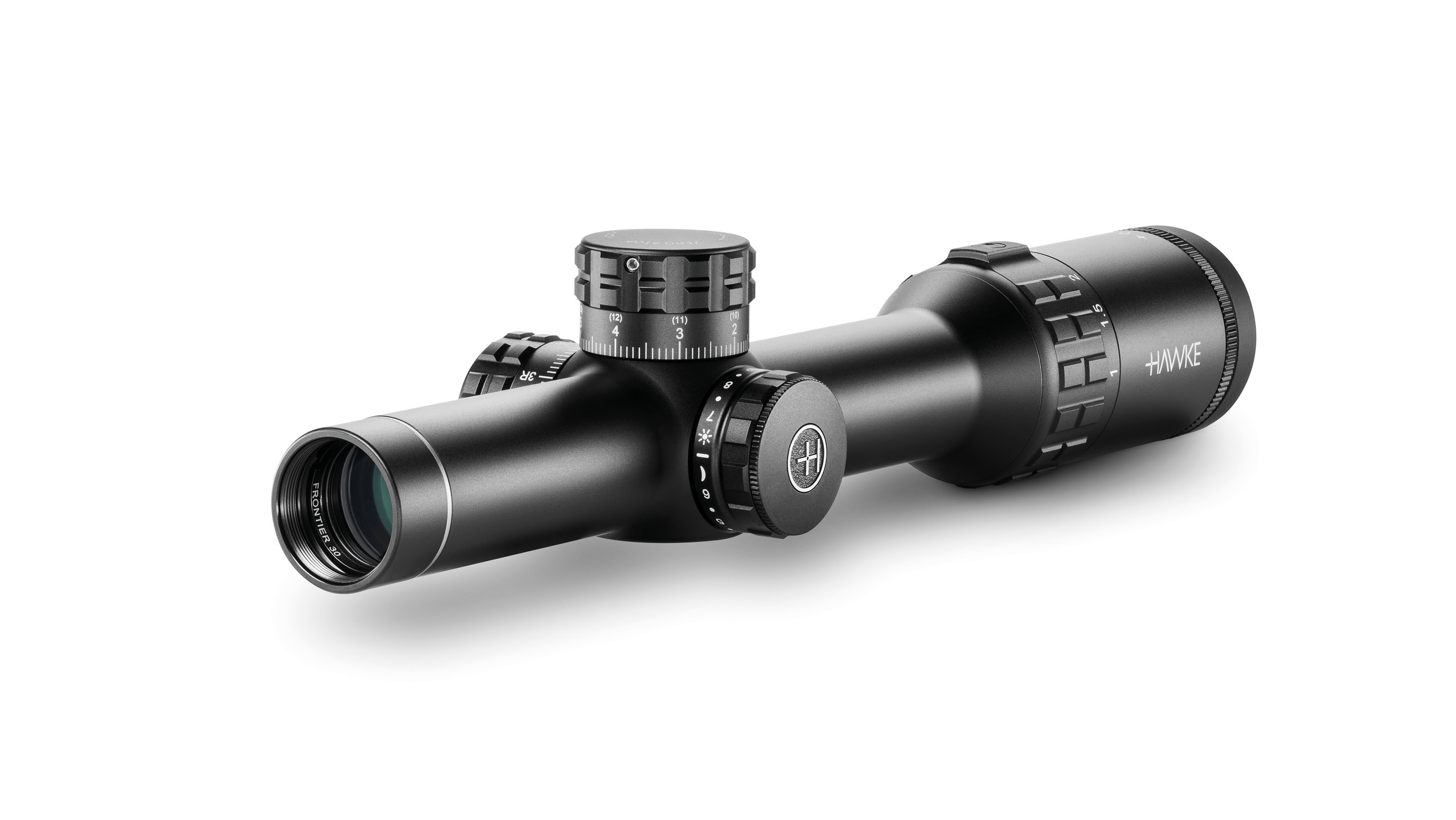

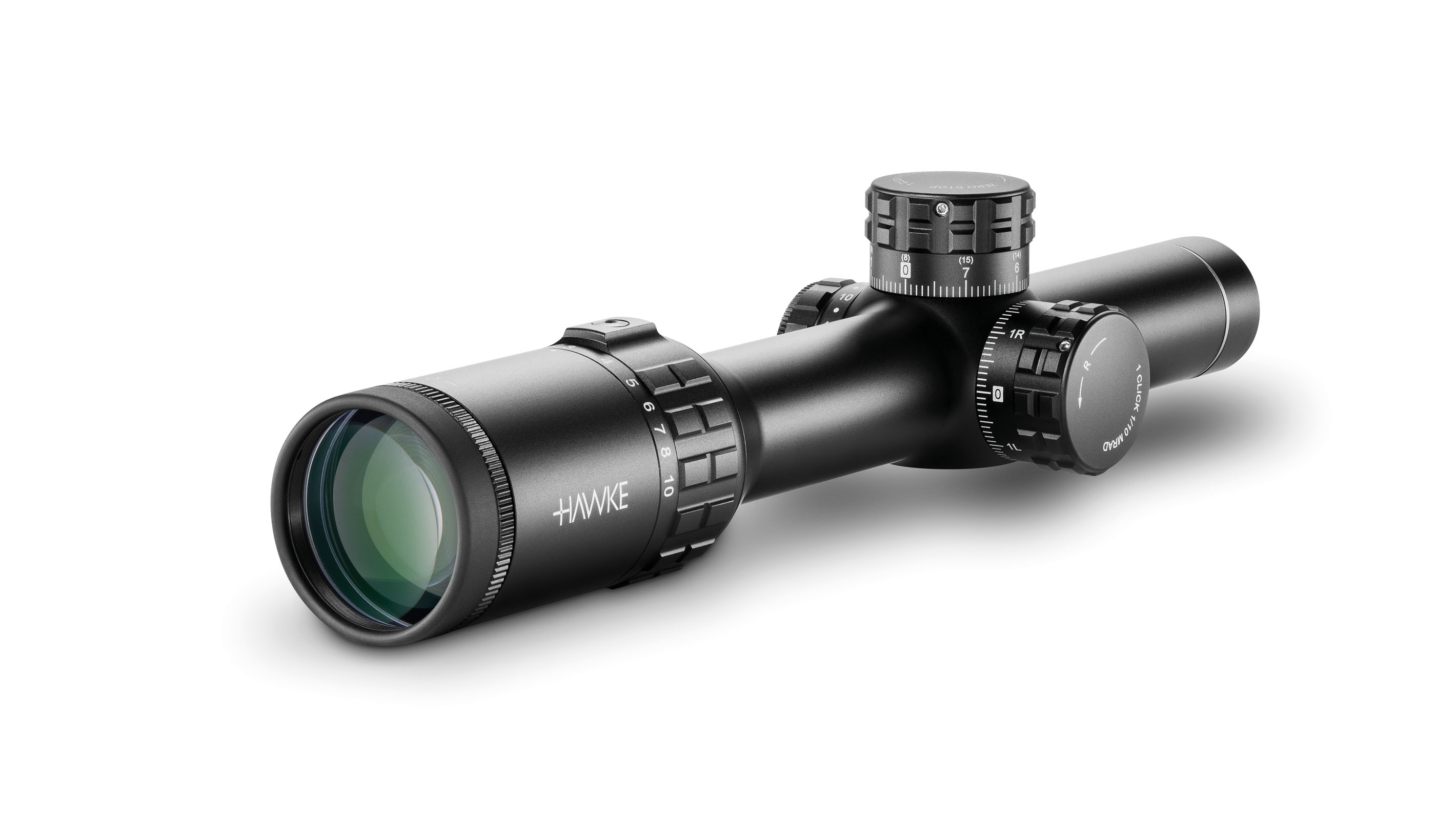

Frontier 30 FD 1-10×24 Mil FD 10x
All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
MIL FD (10x)
Accurate mil spacing on 10x magnification. The bright fiber optic center dot gives a sharp aim point for quick reference and target acquisition. The thick outer posts make visibility easy when hunting in low-light conditions and a fine upper post ensures it doesn’t obstruct your view of the target.
RETICLE SUBTENSIONS
When on 10x magnification, the gap between two marks is equal to 2 MOA of spacing.
Key Features:
- Patented Exposed Zero Lock ‘n’ Stop elevation turret
- 30mm Mono-tube chassis
- Fibre Optic Illumination
- Wide Angle FOV
- High volume eyebox
- 100mm eye relief
- High grade, low dispersion Crown glass
- 21 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
- Supplied with Professional metal flip-up covers
Specification
| Optical System | System H7 |
| Scope Tube | 30mm |
| Magnification | 1 – 10x |
| Objective Lens | 24mm |
| Reticle | Mil FD (10x) |
| Illumination | 11 Levels (Red) |
| Illumination Control | Stepped Rheostat with Off Positions In-between |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 21 Layers |
| Field of View | 116.3 – 11.6ft @100yds / 38.8 – 3.9m @100m |
| Field of View (°) | 21.9 – 2.2 |
| Eye Relief | 4in / 102mm |
| PX / Focus | 100yds / 91m |
| Exit Pupil | 0.94 – 0.09″ / 24 – 2.4mm |
| Click Value | 1/10 MRAD |
| Turret Type (Elevation) | Zero Lock ‘n’ Stop, Exposed, Locking, Resettable |
| Elevation Turret Clicks (max) | 40 MRAD |
| Turret Type (Windage) | Exposed, Locking, Resettable |
| Windage Turret Clicks (max) | 40 MRAD |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 11.1in / 283mm |
| Weight | 19oz / 540g |
