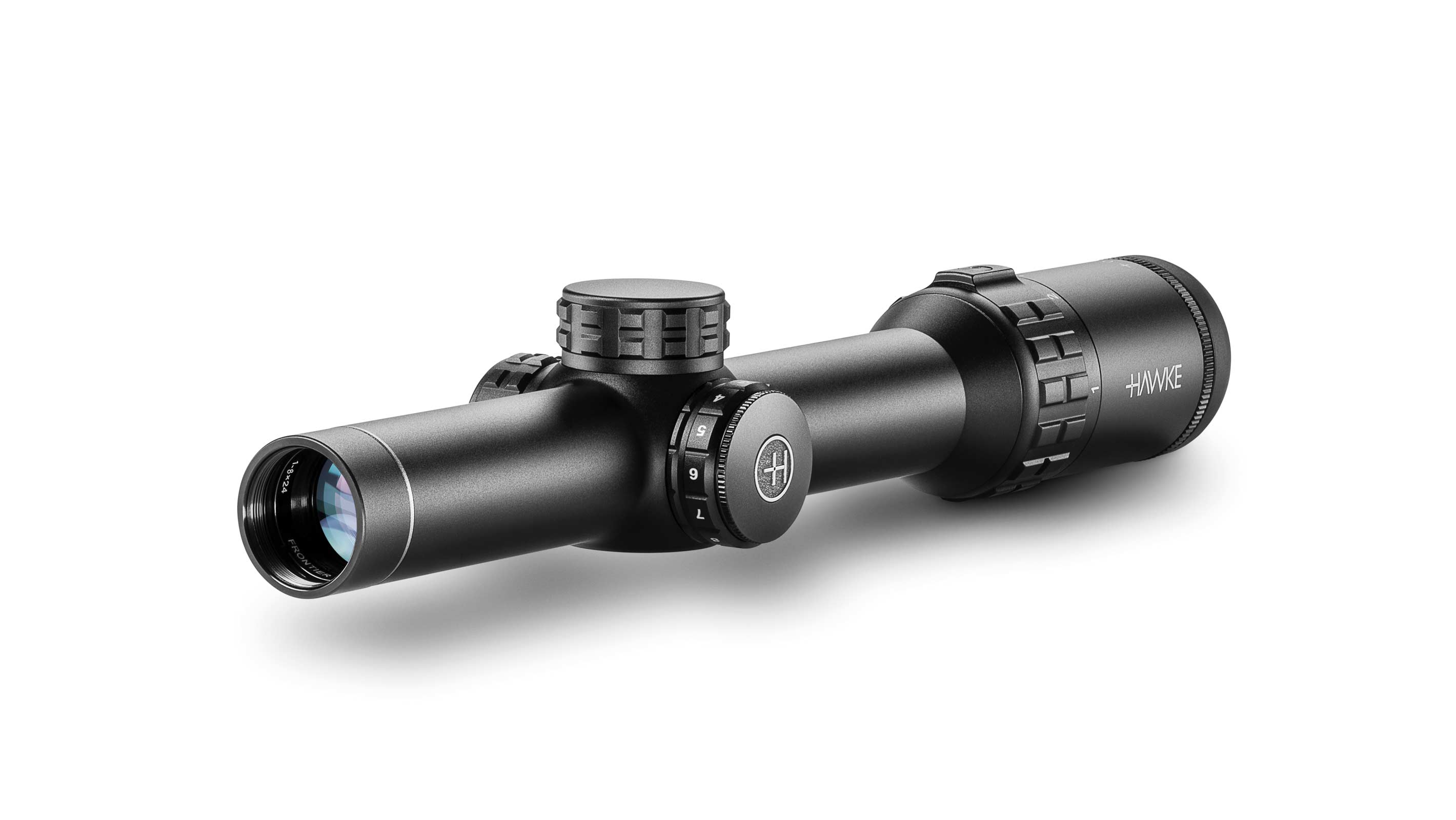

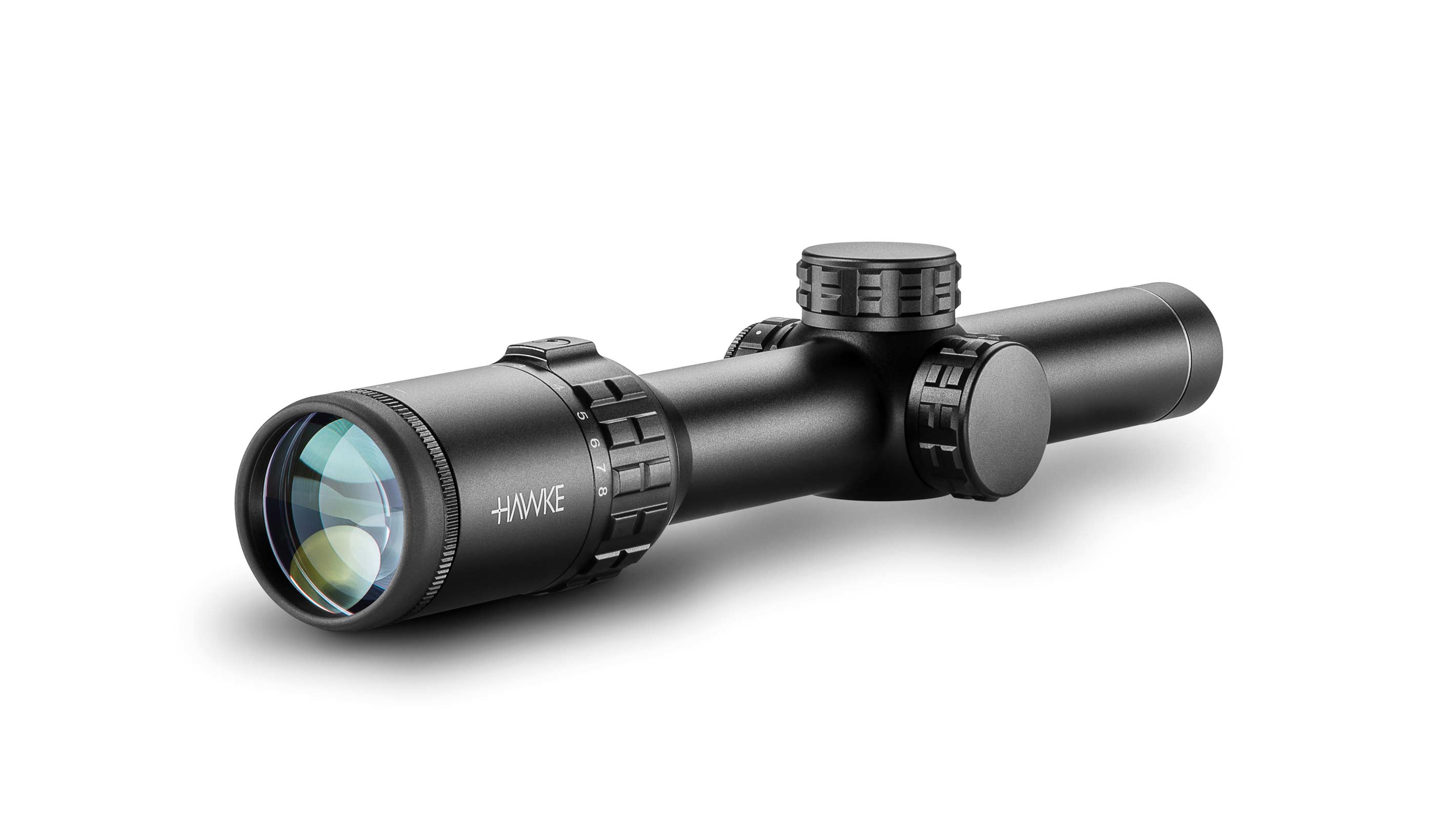

Frontier 30 FD 1-8×24 LRX Tactical FD 8x
All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
LRX – Tactical FD (8X)
Working with your bullet’s trajectory the LRX – Tactical FD (8x) reticle, exclusively from Hawke, provides usable aim points for AR-pattern rifles. The LRX – Tactical FD (8x) is built specifically around the ballistics of 5.56 cartridges, making holdover accuracy more possible than ever before.
The bright fiber optic center dot gives a sharp aim point for quick reference and target acquisition. Extra holdover aim points are included on the fine lower post to give graduation and accuracy when shooting at longer distances.
Initial zero can be performed at 50 yards. This will provide good accuracy using only the central aim point out to 200 yards. For the best accuracy and proper use of the BDC, zero should be confirmed at 200 yards and adjusted accordingly.
The BDC reticle can also be used for other cartridges and ammunition by adjusting the magnification. Alternatively, the aim points can be calibrated for distances in meters by reducing the magnification slightly.
Key Features:
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Fibre Optic Illumination
- Wide Angle FOV
- High volume eyebox
- 100mm eye relief
- High grade, low dispersion Crown glass
- 21 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
- Supplied with Professional metal flip-up covers
Specification
| Optical System | System H7 |
| Scope Tube | 30mm |
| Magnification | 1 – 8x |
| Objective Lens | 24mm |
| Reticle | LRX – Tactical FD (8x) |
| Illumination | 11 Levels (Red) |
| Illumination Control | Stepped Rheostat |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 21 Layers |
| Field of View | 116.3 – 14.6ft @100yds / 38.8 – 4.9m @100m |
| Field of View (°) | 21.9 – 2.8 |
| Eye Relief | 4in / 102mm |
| PX/Focus | 100yds / 91m |
| Exit Pupil | 0.94 – 0.12″ / 24 – 3mm |
| Click Value | 1⁄2 MOA |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 300 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 300 MOA |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 10.9in / 278mm |
| Weight | 18.3oz / 520g |
