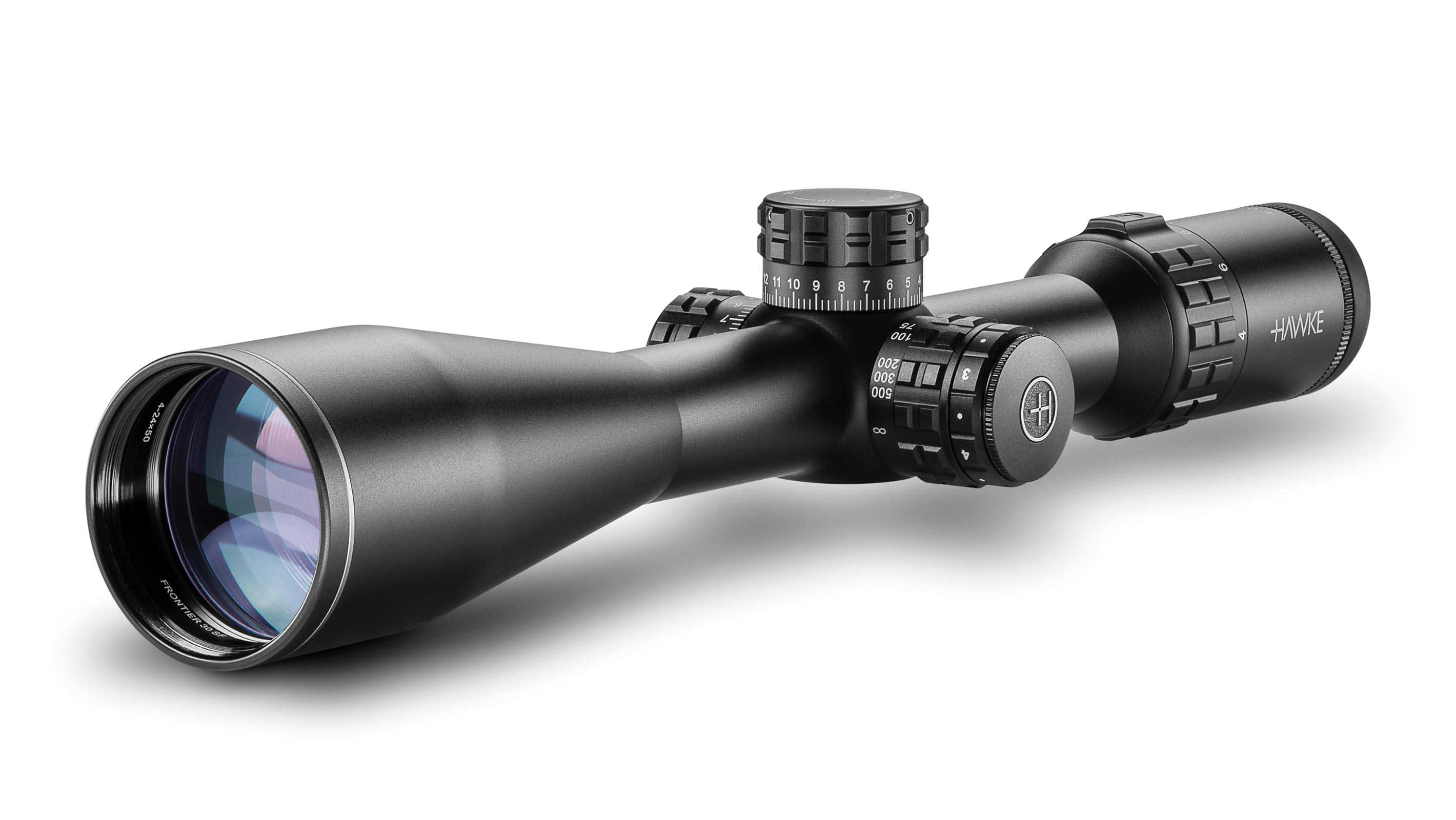

Frontier 30 SF 4-24×50 LR Dot
All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
LR Dot Reticle
The LR Dot reticle was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. It also suits some of the faster bullets that might be used for hunting foxes and similar quarry.
This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. A useful tip: at 16x magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds; a popular sized animal to hunt with this type of reticle.
Key Features:
- Patented Exposed Zero Lock ‘n’ Stop elevation turret
- 30mm Mono-tube chassis
- Side Focus
- Illumination
- Wide Angle FOV
- High volume eyebox
- 100mm eye relief
- Multi-LED high intensity reticle
- High grade, low dispersion Crown glass
- 21 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
- Supplied with Professional metal flip-up covers.
Specification
| Optical System | System H7 |
| Scope Tube | 30mm |
| Magnification | 4 – 24x |
| Objective Lens | 50mm |
| Reticle | LR Dot (16x) |
| Illumination | 6 Levels (Red) |
| Illumination Control | Stepped Rheostat with Off Positions In-between |
| Parallax | Side Focus |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 21 Layers |
| Field of View | 28.2 – 4.8 ft @100 yds / 9.4 – 1.6 m @100 m |
| Field of View (°) | 5.4 – 0.9 |
| Eye Relief | 4 in / 102 mm |
| PX/Focus | 15 yds – ∞ / 14 m – ∞ |
| Exit Pupil | 0.49 – 0.08 in / 12.5 – 2.1 mm |
| Click Value | ¼ MOA |
| Turret Type (Elevation) | Zero Lock ‘n’ Stop, Exposed, Locking, Resettable |
| Elevation Turret Clicks (max) | 75 MOA |
| Turret Type (Windage) | Exposed, Locking, Resettable |
| Windage Turret Clicks (max) | 75 MOA |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 14.5 in / 369 mm |
| Weight | 23.4 oz / 662 g |
