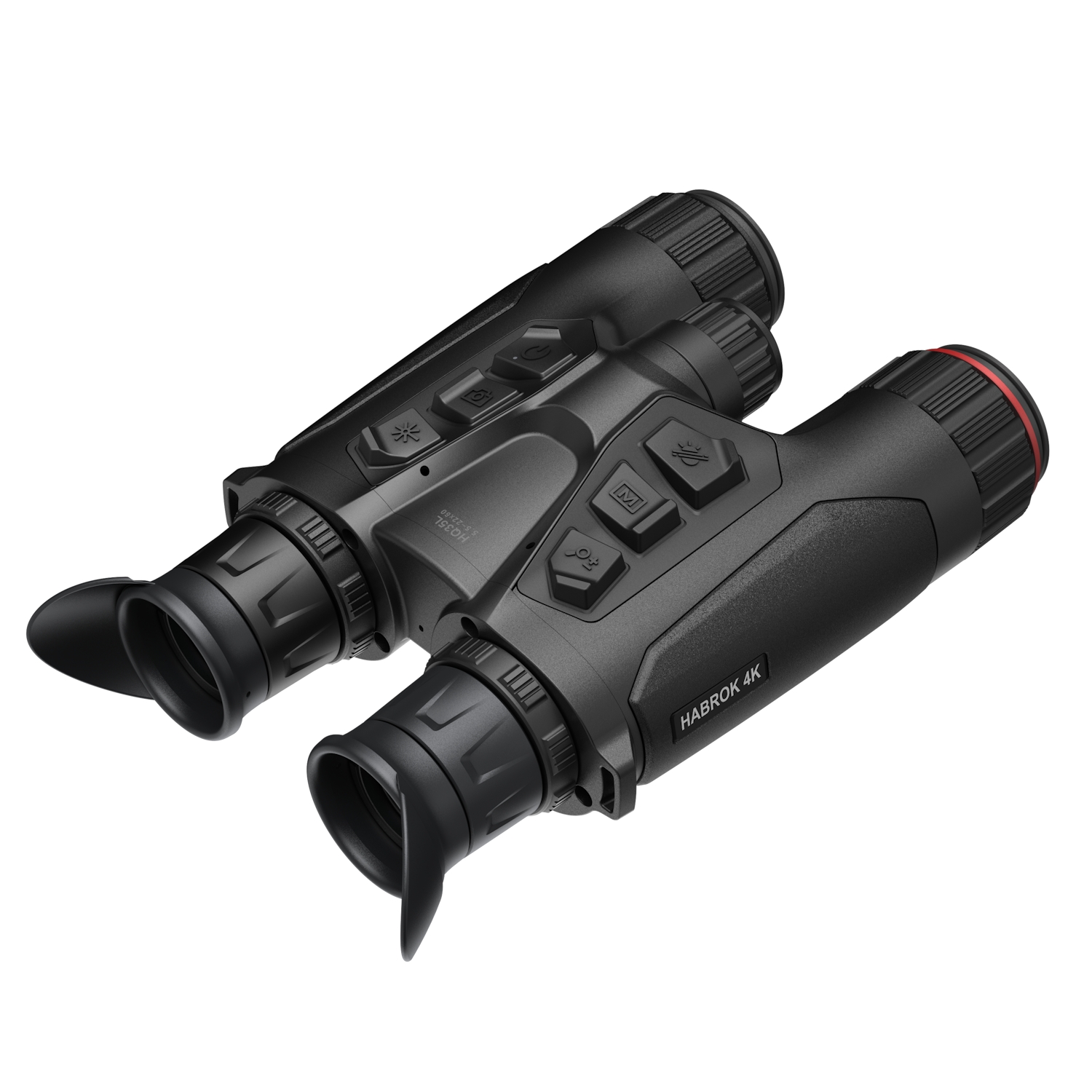

Habrok 4k 35mm 640px Thermal with 4K Optical
The HIKMICRO HABROK 4K HQ35L delivers cutting-edge multi-spectrum performance in a compact, high-precision format. Featuring a highly sensitive 640×512 thermal detector with <20mK NETD and an advanced 4K CMOS optical channel, the HQ35L ensures exceptional clarity and detection in all lighting and weather conditions—from open daylight to total darkness.
Equipped with a 60mm F2.2 lens and dual replaceable IR illuminators (850nm & 940nm), this unit adapts to a wide range of use cases—hunting, birding, search and rescue, and marine observation. The 1000m integrated laser rangefinder ensures pinpoint distance calculation, while the ergonomic chassis and intuitive controls offer seamless, on-the-fly operation even in field conditions.
The integrated image stabilization algorithm minimizes blur and vibration, delivering steady visuals across the 5.5x to 22x zoom range—ideal for scanning, tracking, and recording with precision. Its dual-spectrum system allows thermal and optical fusion, detecting hidden heat sources while preserving visual detail through the 0.49” OLED display at 1920×1080 resolution.
With an IP67 waterproof rating, 8+ hours of runtime from replaceable 18650 batteries, onboard 64GB storage, and built-in GPS, compass, and hotspot functionality, the HQ35L is engineered for endurance, clarity, and mission-critical performance. Whether spotting through dense foliage or capturing low-light wildlife footage, the HQ35L delivers reliability where traditional optics fall short. Experience the future of binocular technology with the HABROK 4K HQ35L.
Key Features:
- 640×512 Thermal Sensor with 20mK NETD: Detects heat signatures with extreme sensitivity and clarity in all environments.
- 4K Ultra HD Optical Camera with 60mm Lens: Captures detailed visuals in daylight, twilight, and total darkness.
- Dual Replaceable IR Illuminators (850nm & 940nm): Adapt your visibility to different environments and light conditions effortlessly.
- Built-in 1000m Laser Rangefinder: Precisely measure target distances in real time with ±1m accuracy.
- Advanced Image Stabilization Algorithm: Delivers smooth, blur-free viewing even when zoomed or in unstable field conditions.
- 640×512 thermal sensor with ultra-sensitive 20mK NETD
- 4K CMOS camera with 60mm high-resolution lens
- Dual replaceable IR illuminators (850nm/940nm)
- 1000m integrated laser rangefinder
- Up to 8 hours battery life
- Onboard 64GB image and video storage
- 5.5x to 22x variable magnification
- Real-time image stabilization system
- IP67 waterproof and rugged magnesium chassis
- Built-in GPS, compass, and hotspot sharing
Specification
| Sensor Type | VOx Uncooled Focal Plane Array |
| Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm – 14 μm |
| Thermal Sensitivity (NETD) | < 20 mK (@25°C, F#=1.0) |
| Lens | 35 mm, F1.0 |
| Focus Mode | Manual (Focus Ring) |
| Detection Range | 1800 m |
| Minimum Focusing Distance | 3.5 m |
| Magnification | 3.0× to 22.0× (7.3× base) |
| Field of View (H × V) | 12.5° × 10.1° |
| Field of View @ 100 m | 22.0 m × 17.6 m |
| Optical Module Sensor Type | 1/1.8″ Progressive Scan CMOS |
| Optical Module Resolution | 3840 × 2160 |
| Optical Module Lens | 60 mm, F2.2 |
| Optical Module Minimum Working Distance | 3 m |
| Optical Module Focus Mode | Manual (Focus Ring) |
| Optical Module Magnification | 5.5× to 22.0× (4× base) |
| Optical Module Field of View (H × V) | 7.3° × 4.1° |
| Optical Module Field of View @ 100 m | 12.6 m × 7.2 m |
| Smart IR | Yes |
| IR Illuminator | Replaceable |
| Default IR Wavelength | 940 nm |
| Optional IR Wavelength | 850 nm |
| Night Viewing Range | 400 m |
| Display | 0.49 inch OLED, 1920 × 1080 |
| Thermal Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Optical Modes | Day, Night, Auto |
| Flat Field Correction (FFC) | Auto / Manual / External |
| Exit Pupil | 8 mm |
| Eye Relief | 15 mm |
| Diopter Adjustment | -5 D to +3 D |
| Brightness Adjustment | Yes |
| Contrast Adjustment | Yes |
| Tone Adjustment | Cold / Warm |
| Zoom Pro | Yes |
| Video Recording | Yes |
| Snapshot Capture | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Onboard Storage | 64 GB Built-in EMMC |
| Picture-in-Picture (PIP) | Yes |
| Wi-Fi Hotspot | Yes |
| Hot Track | Yes |
| Digital Magnetic Compass | Yes |
| GPS Module | Yes |
| Local Album Access | Yes |
| Battery Type | Replaceable & Rechargeable 18650 Li-ion |
| Operating Time | ≥8 hours (@25°C, Hotspot off) |
| Charging Interface | USB Type-C |
| Charging Power | 5 V DC, 2 A |
| External Power Support | Yes |
| Protection Level | IP67 |
| Dimensions | 138.1 × 68.5 × 222.4 mm (5.44″ × 2.7″ × 8.75″) |
| Weight | 798 g (without battery) |
| Interpupillary Adjustment Range | 60 mm – 74 mm |
| Mounting | 1/4″-20 UNC Adapter |
| Operating Temperature | -30°C to +55°C |
| Laser Class | Class 1 |
| Laser Wavelength | 905 nm |
| Laser Measuring Range (Min) | 10 m |
| Laser Measuring Range (Max) | 1000 m |
| Laser Accuracy | ±1 m |
