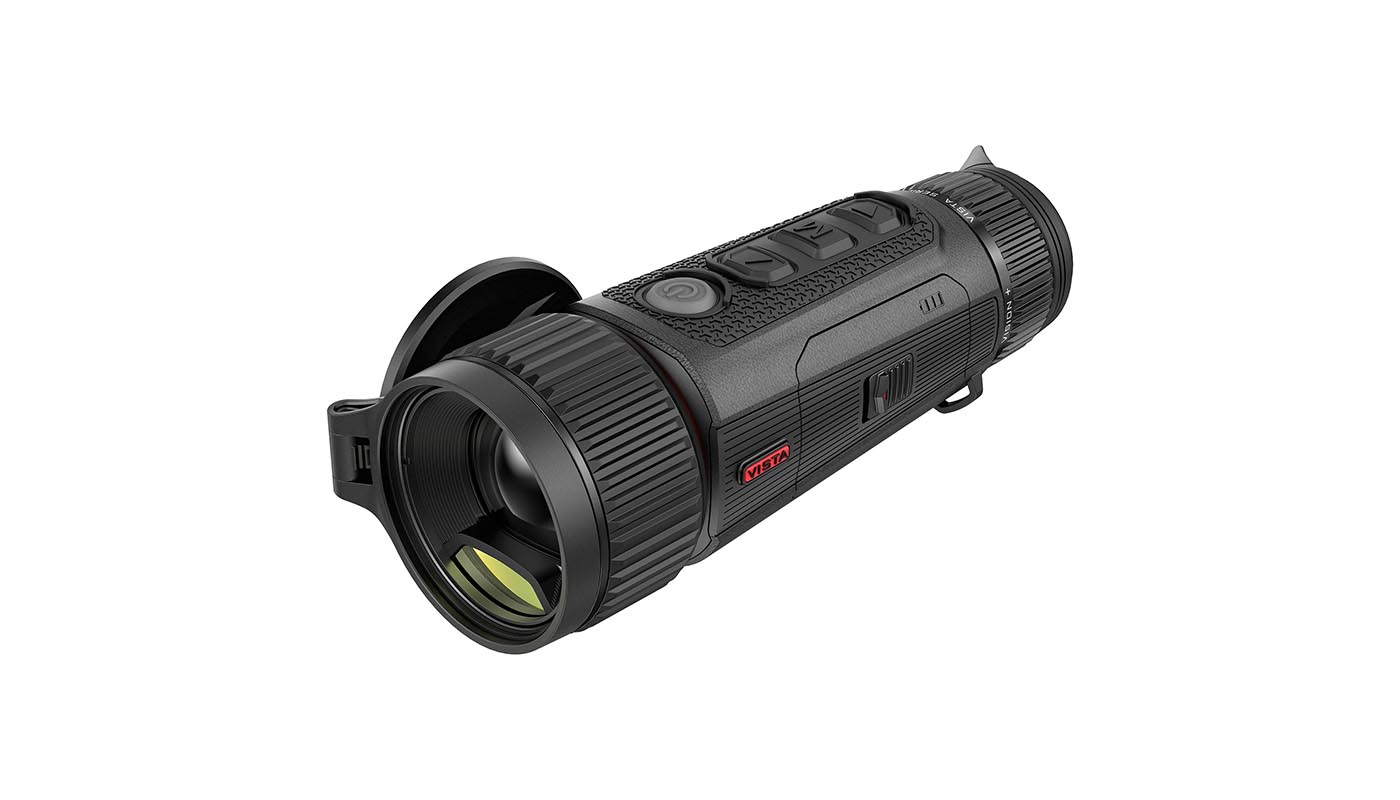

NocPix Thermal Imaging Monocular Vista Series – H35R
Ultimate Visual Experience!The Vista series thermal imaging monoculars are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection. VISTA thermal imagers are designed for various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.
Key Features:
- 640×512 12μm detector
- NETD≤15mK
- 60Hz high frame rate
- F0.9 objective lens
- AMOLED 2560×2560 round display
- Rechargeable Battery pack IBP-7 for quick replacement
- Smooth digital zoom: 1×~8×
- Ultra clear mode
- Eye protection with low brightness, colour palette and warm hue
- Electronic image stabilization
What’s Included
- VISTA series Thermal Imaging Monocular
- Portable bag
- Battery pack IBP-7 × 2
- Data cable
- Neck Strap
- Lens cleaning cloth
- Quick start guide
Specification
| Magnification | 3~28 |
| Objective Lens | 35mm F0.9 |
| Model | VISTA H35R |
| Battery | Replaceable li-ion battery pack IBP-7 / 4400mAh |
| Weight | 22.58oz / 640g |
| NETD (mk) | 15 |
| Type | – |
| Resolution | 640 x 512 |
| Pixel Size | 12 |
| Frame Rate | 60 |
| Field of View | 12.5 x 10.0 |
| Field of View (Linear) | 22 x 18 |
| Dimensions (mm) | 190 x 67 x 79 |
| Dimensions (in) | 7.48 x 2.64 x 3.11 |
| Thermal Sensor | 640 x 512 12μ |
| Detection Range | 1800 |
| Eye Relief | 25 |
| Exit Pupil Diameter | 8 |
| Diopter | -4 ~ +6 |
| Display Type | AMOLED |
| Display Resolution | 2560 x 2560 |
| Max Operating Time | 5.5 |
| External Power Supply | – |
| WiFi | YES |
| Mic | YES |
| Memory Card Capacity | 64 |
| IP Rating | IP67 |
| Max Recoil Power | – |
| Max Operating Temperature | -20 ~ +50 |
| Compatible Mount | – |
| Range Finding Distance | 1200 |
| Laser | Class 1 |
| Ballistic Calculation | – |
| Photo Video Recorder | – |
| Recoil Activated Video | – |
