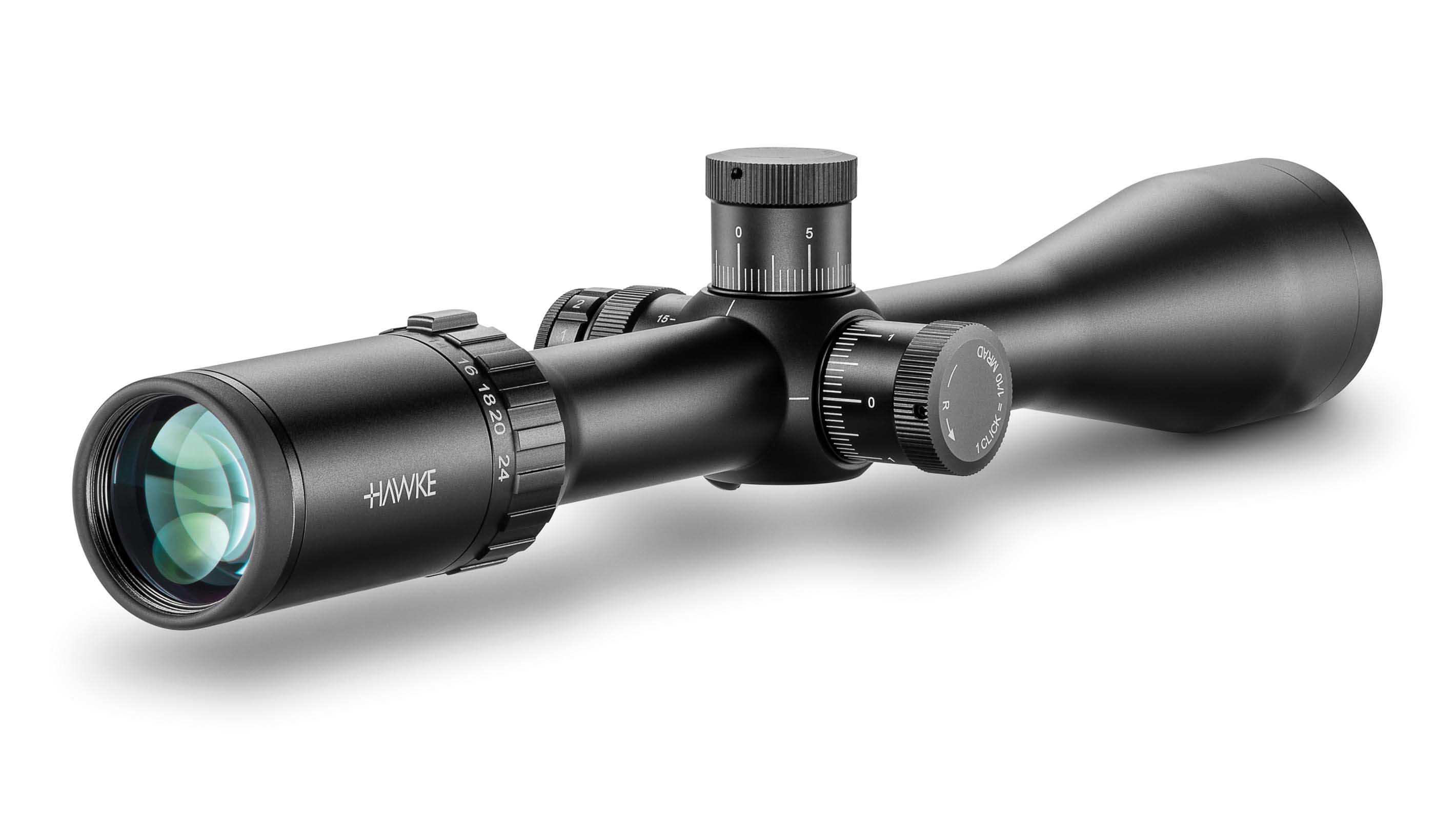

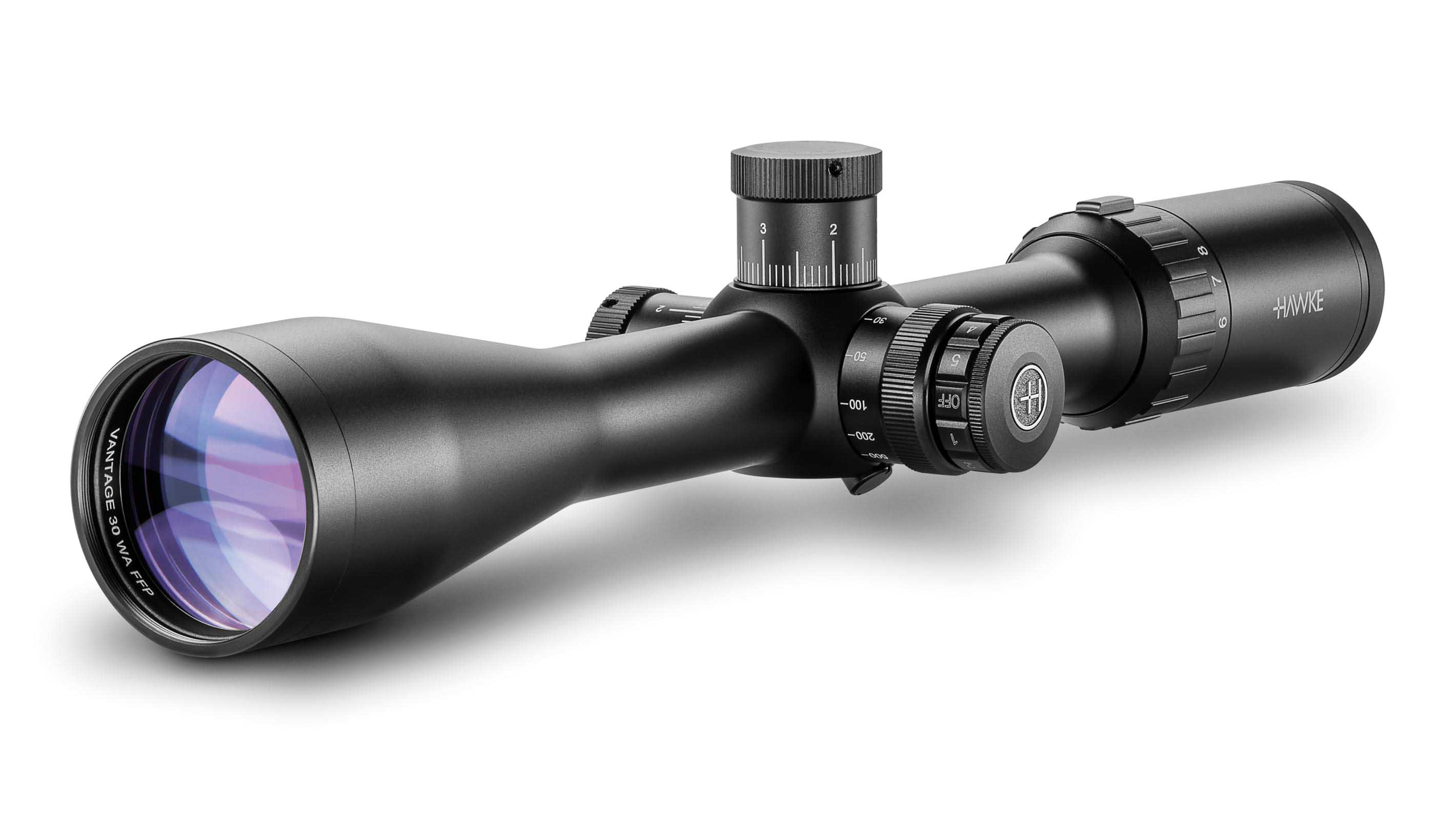

Vantage 30 WA FFP 6-24×50 Half Mil Dot IR
An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
FFP Half Mil Dot Reticle (24x)
The FFP Half Mil Dot reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles. With half mil spaced markings out beyond 5 mil in all directions, the FFP Half Mil Dot is a versatile reticle that provides aim points no matter how extreme the conditions.
Hollow posts are segmented into mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.
The mil spaced reticle and 1/10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.
Key Features:
- Exposed Locking Turrets
- First Focal Plane (FFP)
- 30mm Mono-tube chassis
- Wide Angle
- Side Focus
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specification
| Optical System | System H2 |
| Scope Tube | 30mm |
| Magnification | 6 – 24x |
| Objective Lens | 50mm |
| Reticle | FFP Half Mil Dot (24x) |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Side Focus |
| Focal Plane | FFP (First Focal Plane) |
| Lens Coating | Fully Multi-Coated – 11 Layers |
| Field of View | 21.0 – 5.2 ft @100yds7 – 1.7 m @100m |
| Field of View (°) | 4 – 1 |
| Eye Relief | 3.5 in / 90 mm |
| PX/Focus (Error free from) | 10 yds – ∞ / 9 m – ∞ |
| Exit Pupil | 0.33 – 0.08″ / 8.3 – 2.1 mm |
| Click Value | 1/10 MRAD |
| Turret Type (Elevation) | Exposed, Locking, Resettable |
| Elevation Turret Clicks (max) | 17 MRAD |
| Turret Type (Windage) | Exposed, Locking, Resettable |
| Windage Turret Clicks (max) | 17 MRAD |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 14.9 in / 378 mm |
| Weight | 26.6 oz / 755 g |
