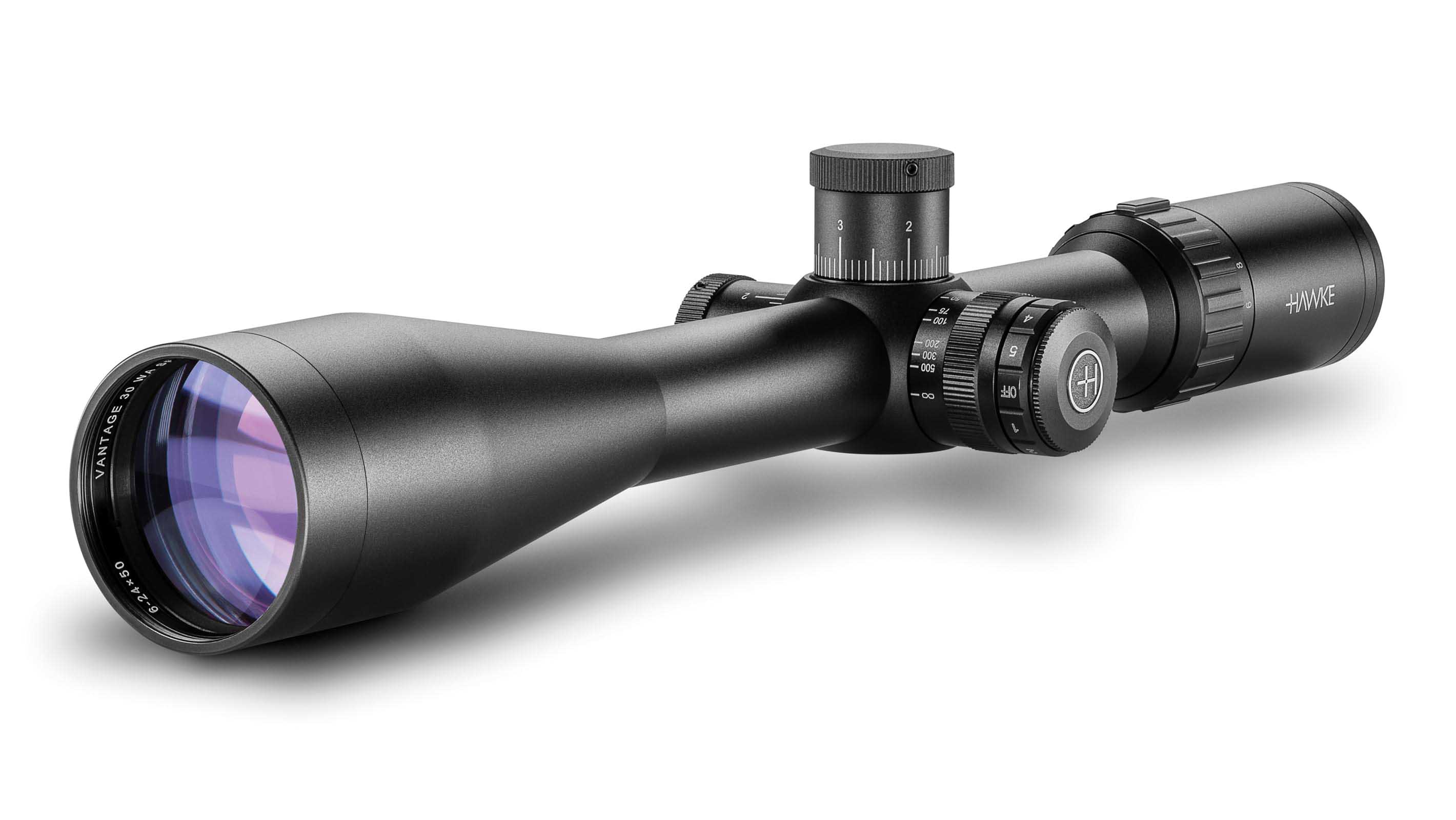

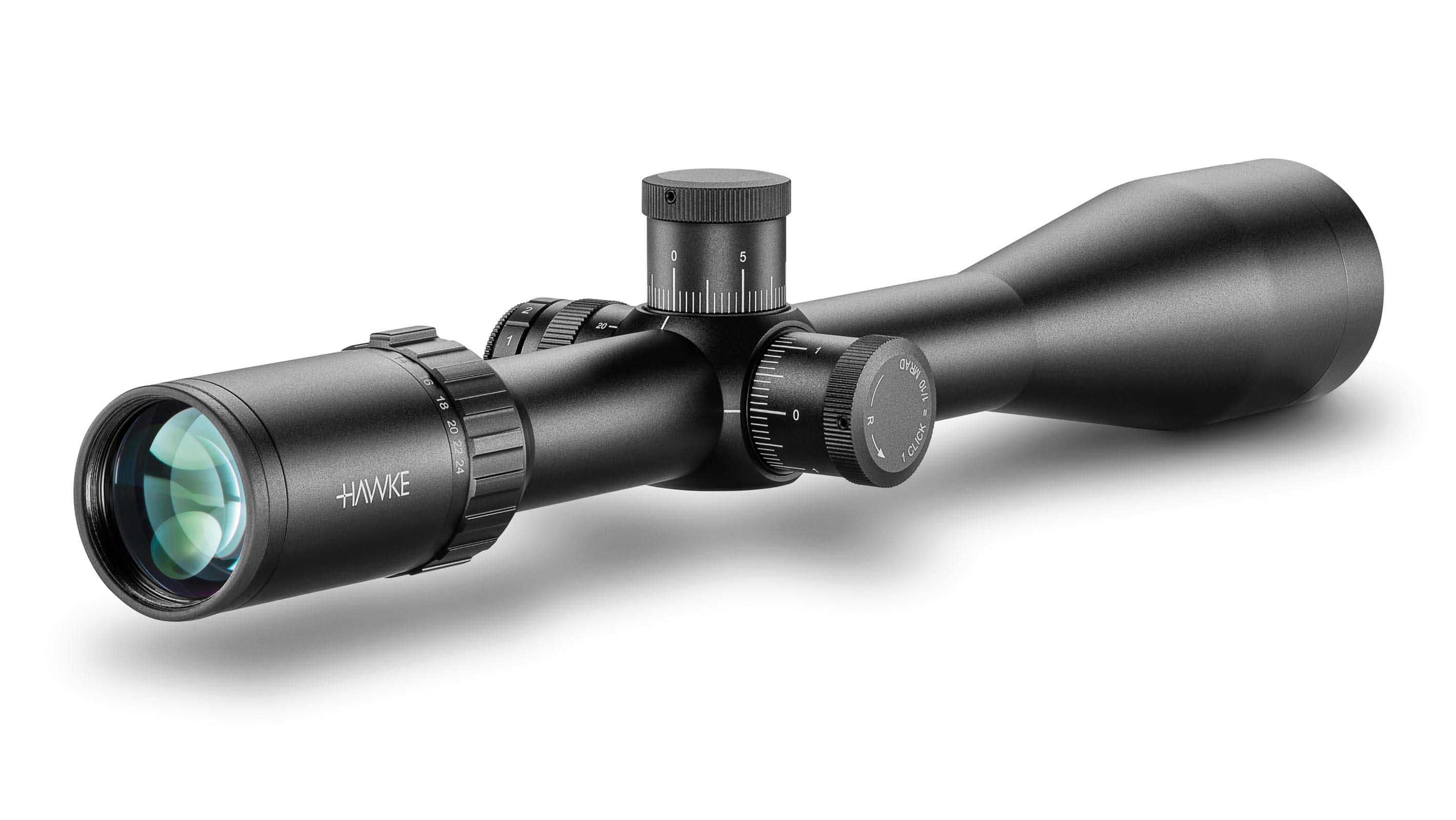

Vantage 30 WA SF 6-24×50 Half Mil Dot IR
An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
10x Half Mil Dot Reticle
Accurate mil spacing on 10x. Features dots and ties at half mil spacing, ensuring that there is always an aim point available. Glass etched fully floating reticle.
One of the additional benefits of the 10x Half Mil Dot is the mil spacing and 0.2 mil spacing segments of the hollow bars which can be used to accurately range find targets.
Key Features:
- Exposed Locking Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Side Focus
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specification
| Optical System | System H2 |
| Scope Tube | 30mm |
| Magnification | 6 – 24x |
| Objective Lens | 50mm |
| Reticle | 10x Half Mil Dot |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Side Focus |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 11 Layers |
| Field of View | 20.7 – 5.4 ft @100yds / 6.9 – 1.8 m @100m |
| Field of View (°) | 4 – 1 |
| Eye Relief | 3.5 in / 90 mm |
| PX/Focus (Error free from) | 10 yds – ∞ / 9 m – ∞ |
| Exit Pupil | 0.33 – 0.08″ / 8.3 – 2.1 mm |
| Click Value | 1⁄10 MRAD |
| Turret Type (Elevation) | Exposed, Locking, Resettable |
| Elevation Turret Clicks (max) | 20 MRAD |
| Turret Type (Windage) | Exposed, Locking, Resettable |
| Windage Turret Clicks (max) | 20 MRAD |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 15.4 in / 390 mm |
| Weight | 26.3 oz / 745 g |
