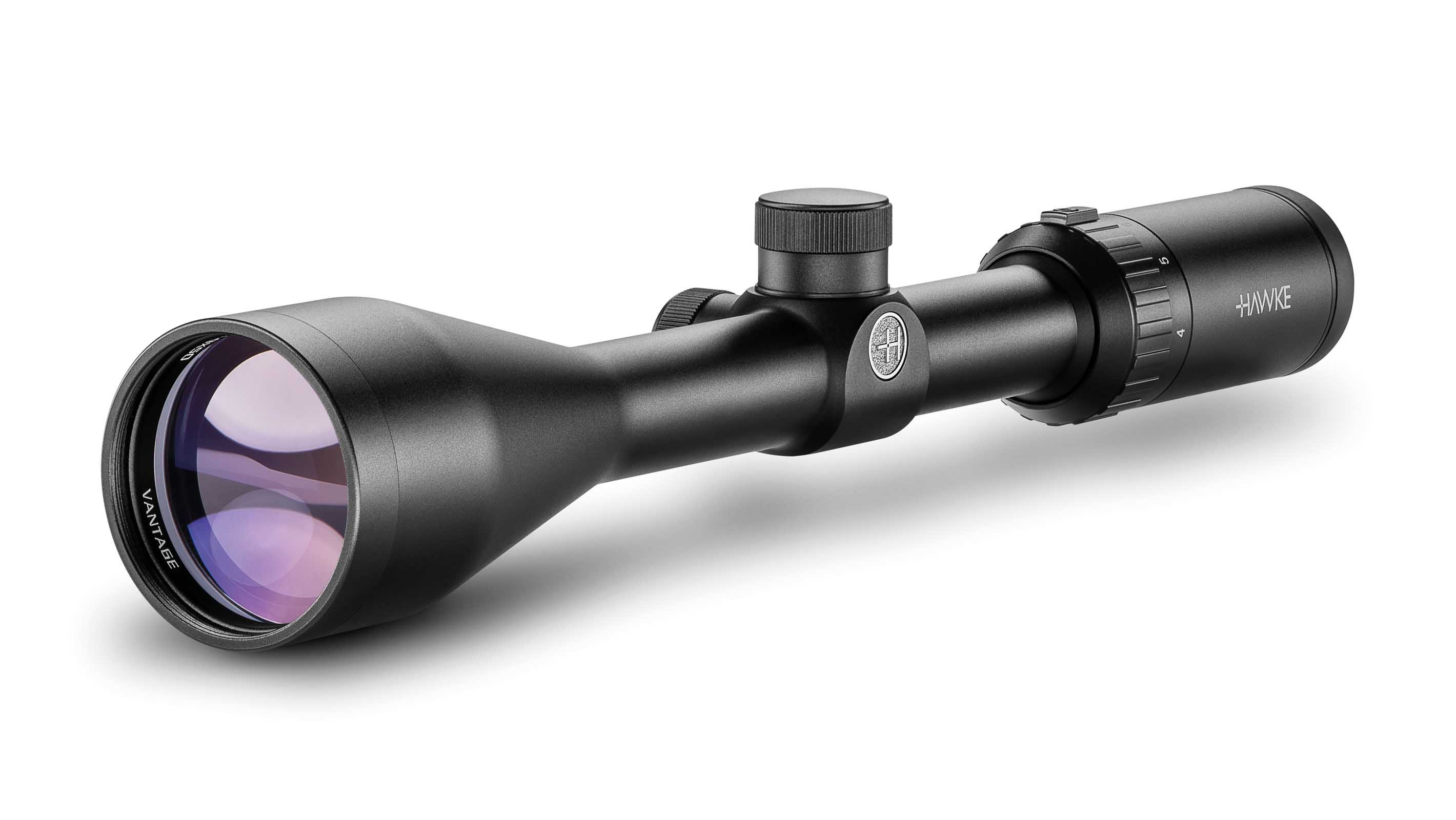

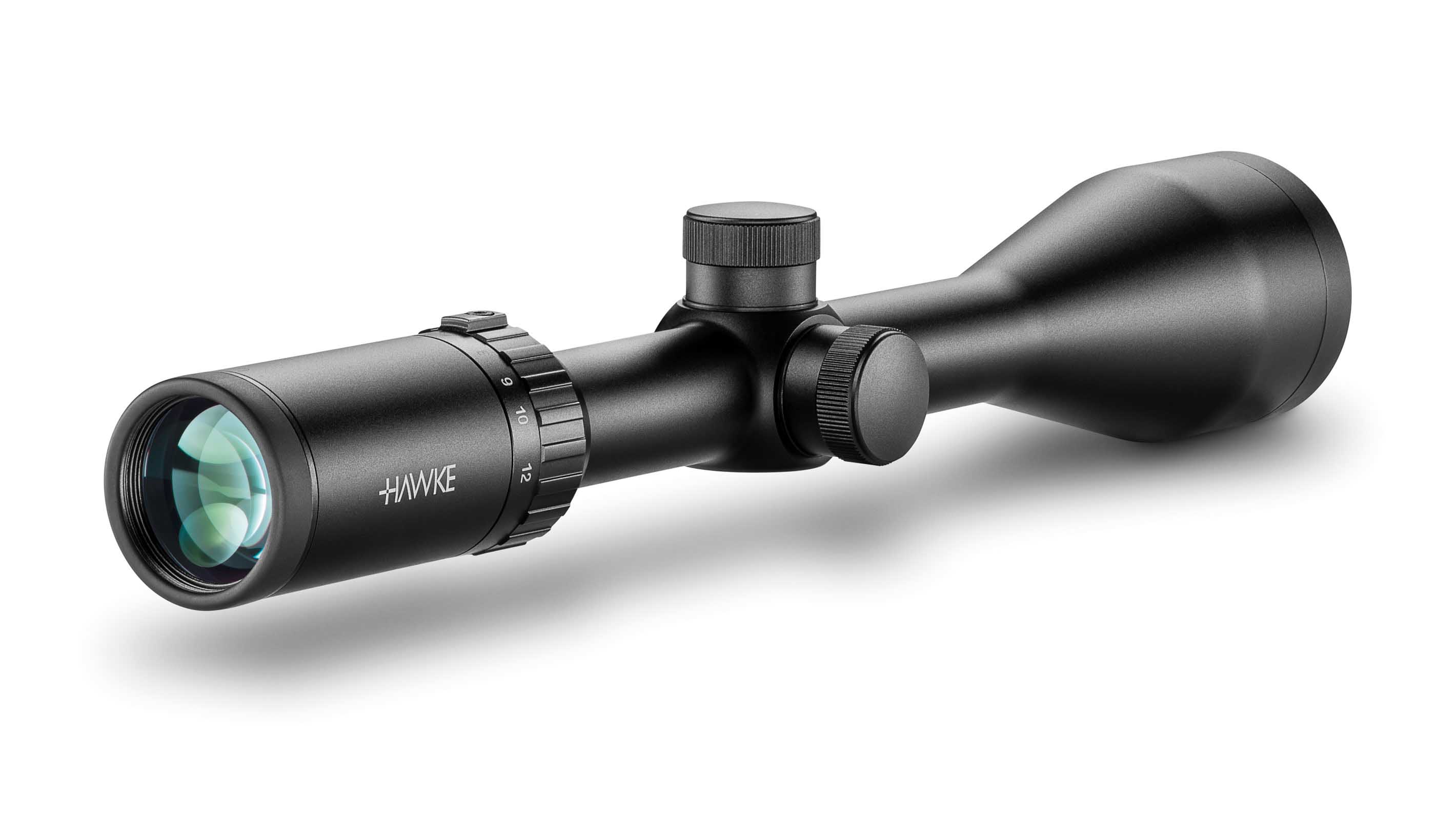

Vantage 4-12×50 30/30 Duplex
An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
30/30 Duplex Reticle
A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification
Key Features:
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specification
| Optical System | System H2 |
| Scope Tube | 1 Inch |
| Magnification | 4 – 12x |
| Objective Lens | 50mm |
| Reticle | 30/30 Duplex |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 11 Layers |
| Field of View | 26.2 – 8.7 ft @100 yds / 8.7 – 2.9 m @100 m |
| Field of View (°) | 5 – 1.7 |
| Eye Relief | 3.5 in / 90 mm |
| PX/Focus | 100 yds / 91 m |
| Exit Pupil | 0.49 – 0.17 in / 12.5 – 4.2 mm |
| Click Value | ¼ MOA |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 80 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 80 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 13.4 in / 341 mm |
| Weight | 16.8 oz / 477 g |
