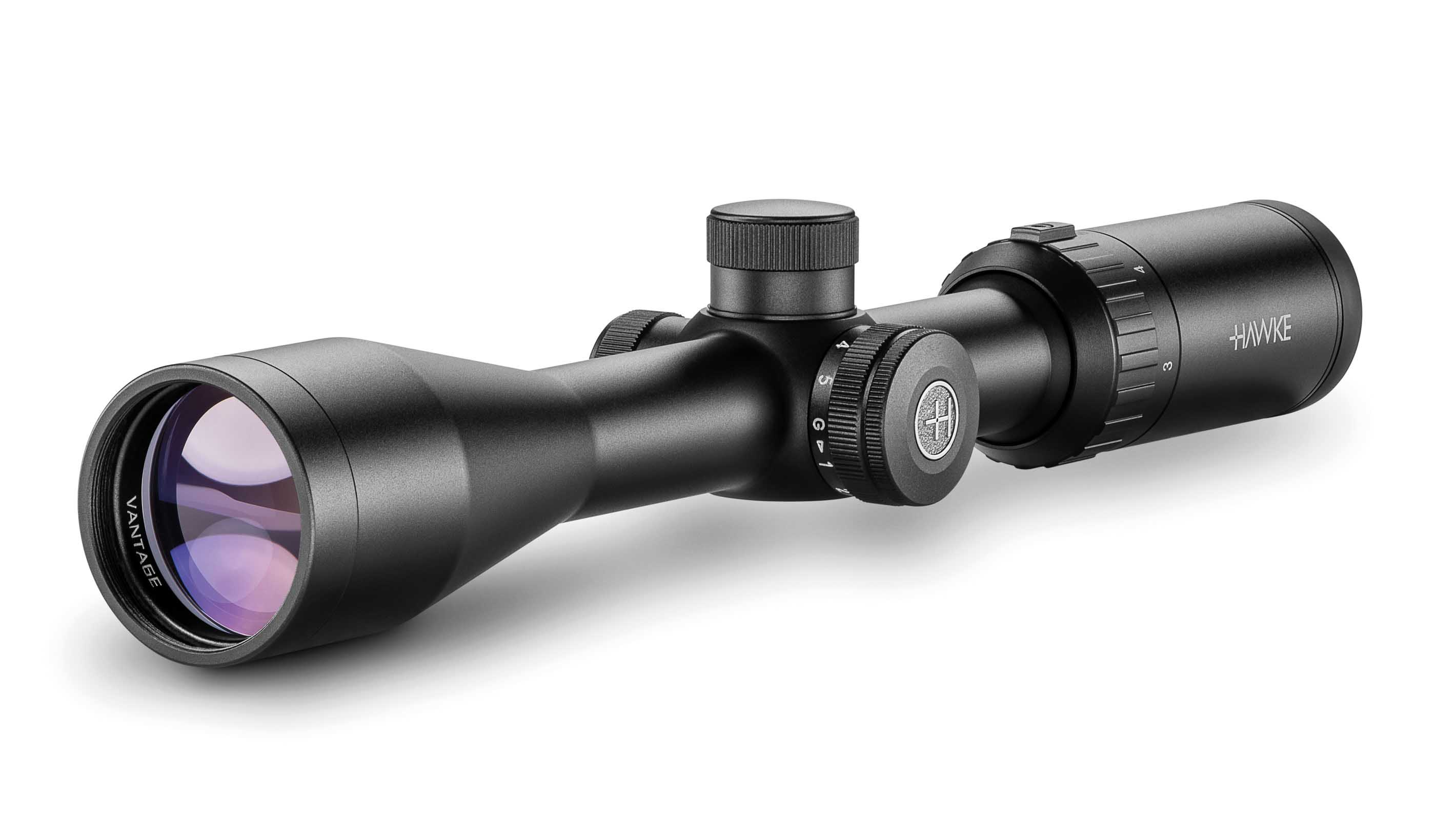

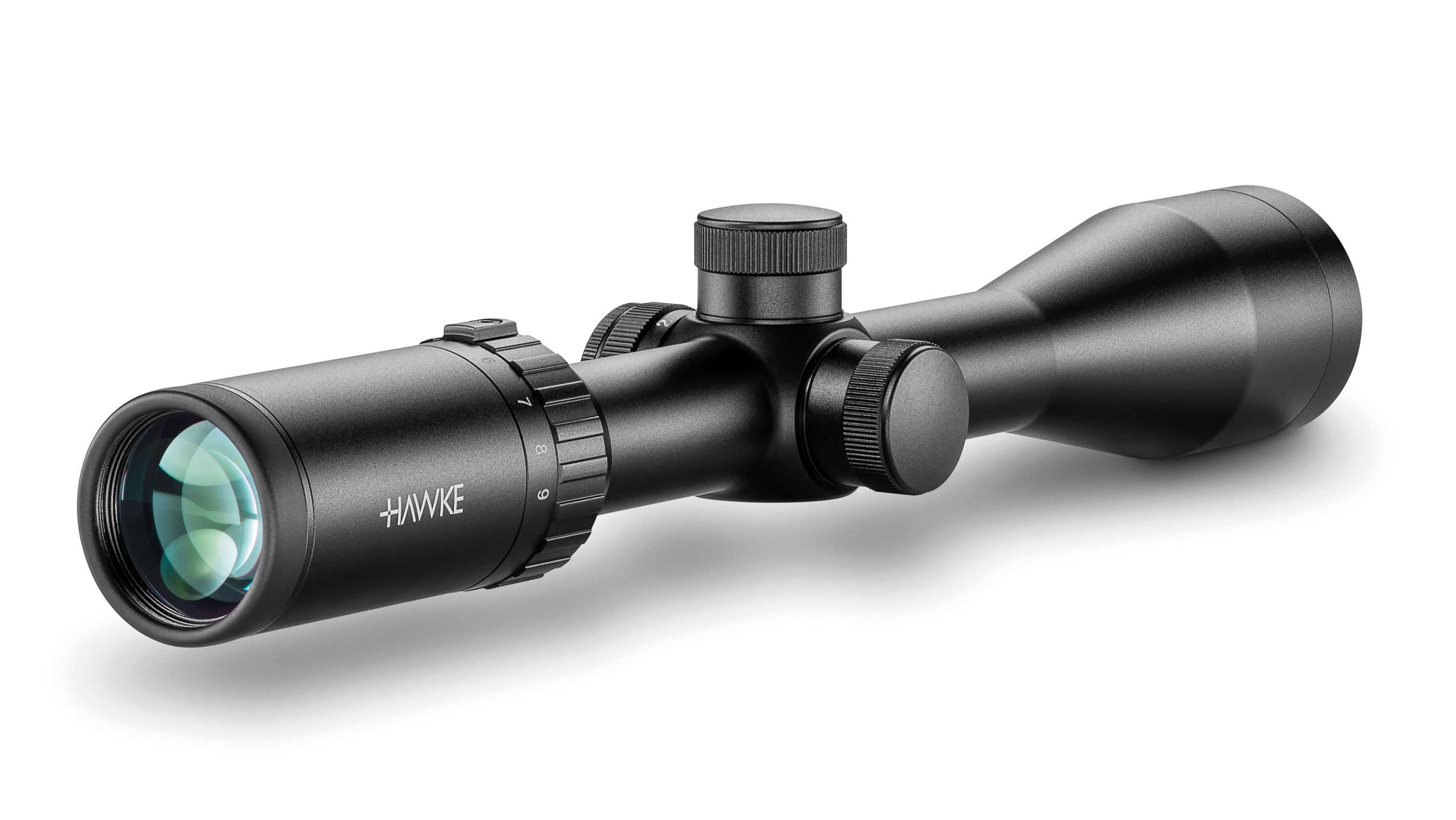

Vantage IR 3-9×40 Slug Gun / Muzzleloader
An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
Slug Gun SR Reticle
Specifically designed for Slug Gun, Muzzleloader, and Straight-Wall cartridges such as 350 Legend.
The Slug Gun SR reticle can be calibrated to speeds of 1300-2400 feet per second. It features illuminated aim points to assist with longer distance shots.
Key Features:
- Capped Low-Profile Turrets
- Slug Gun / Muzzle Loader / Straight-Wall
- 1 Inch Mono-tube chassis
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specification
| Optical System | System H2 |
| Scope Tube | 1 Inch |
| Magnification | 3 – 9x |
| Objective Lens | 40mm |
| Reticle | Slug Gun/Muzzleloader |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 11 Layers |
| Field of View | 32.8 – 10.6 ft @100yds / 10.9 – 3.5 m @100m |
| Field of View (°) | 6.3 – 2 |
| Eye Relief | 4.3 in / 110 mm |
| PX/Focus | 100yds / 91 m |
| Exit Pupil | 0.52 – 0.17″ / 13.3 – 4.4 mm |
| Click Value | ¼ MOA |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 85 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 85 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 12.1 in / 307 mm |
| Weight | 15 oz / 425 g |
