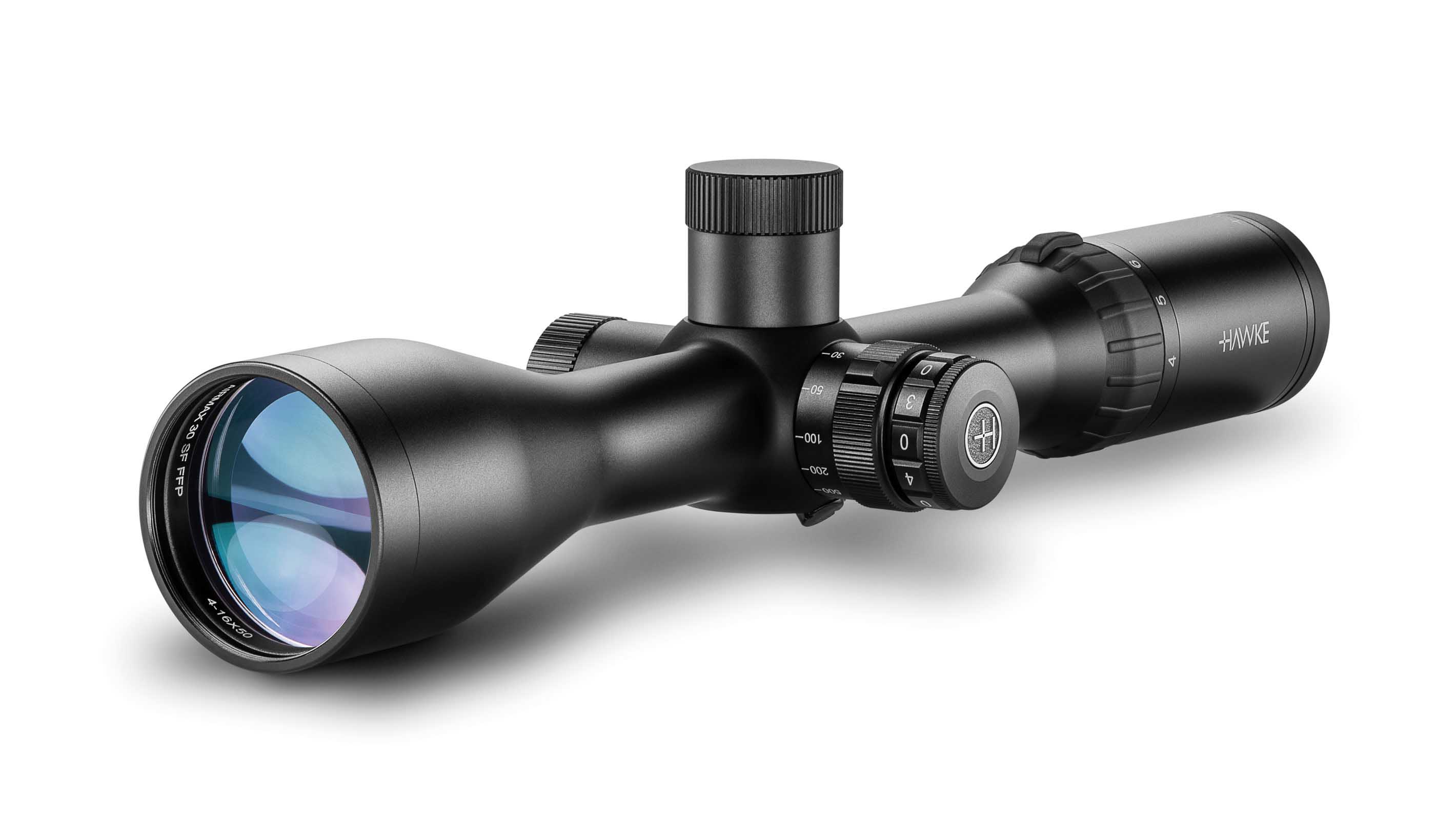

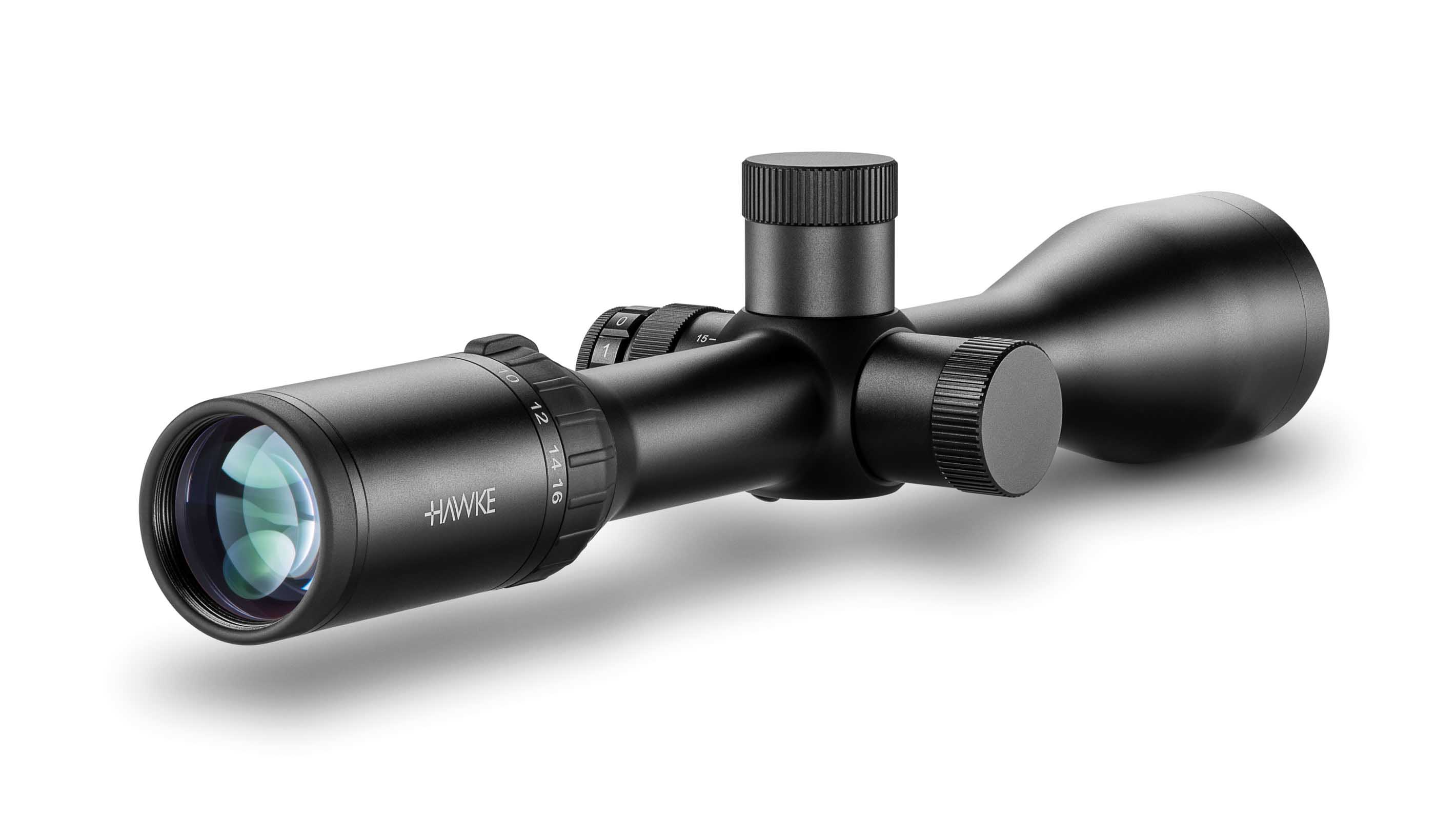

Airmax 30 FFP SF 4-16×50 AMX IR
Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
FFP AMX IR Reticle
The FFP AMX IR reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles.
The FFP AMX IR offers multiple aim points, useful when shooting at longer distances. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are positioned at 0.5, 1.5, 2.5, 3.5 and 4.5 Mil spacing. Hollow posts are segmented into Mil spacing and can be used for bracketing.
The mil spaced reticle and 1/10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.
Specification
| Optical System | System H2 |
| Scope Tube | 30 mm |
| Magnification | 4–16x |
| Objective Lens | 50 mm |
| Reticle | FFP AMX IR (16x) |
| Illumination | 6 Levels (Red) |
| Illumination Control | Stepped Rheostat with Off Positions In-between |
| Parallax | Side Focus |
| Focal Plane | FFP (First Focal Plane) |
| Lens Coating | Fully Multi-Coated – 16 Layers |
| Field of View | 32.5–8.1 ft @100 yds / 10.8–2.7 m @100 m |
| Field of View (°) | 6.2–1.5 |
| Eye Relief | 3.5 in / 90 mm |
| PX/Focus (Error free from) | 10 yds–∞ / 9 m–∞ |
| Exit Pupil | 0.49–0.12 in / 12.5–3.1 mm |
| Click Value | 1⁄10 MRAD |
| Turret Type (Elevation) | Target, Capped, Resettable |
| Elevation Turret Clicks (max) | 21 MRAD |
| Turret Type (Windage) | Target, Capped, Resettable |
| Windage Turret Clicks (max) | 21 MRAD |
| Ocular Type | Fast Focus |
| Power Selector | Rubber Coated Posi-Grip |
| Length | 13.7 in / 348 mm |
| Weight | 26.6 oz / 755 g |
