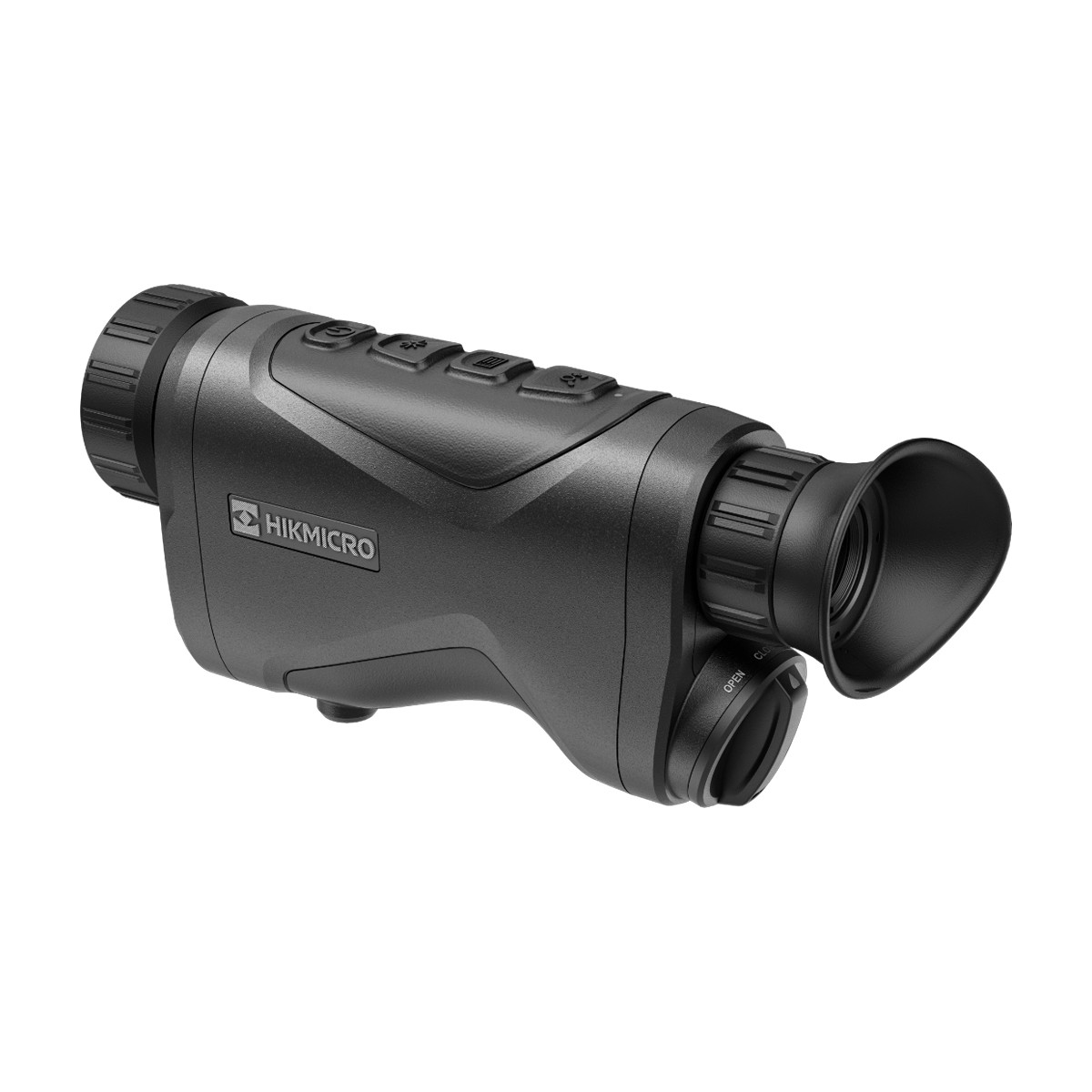

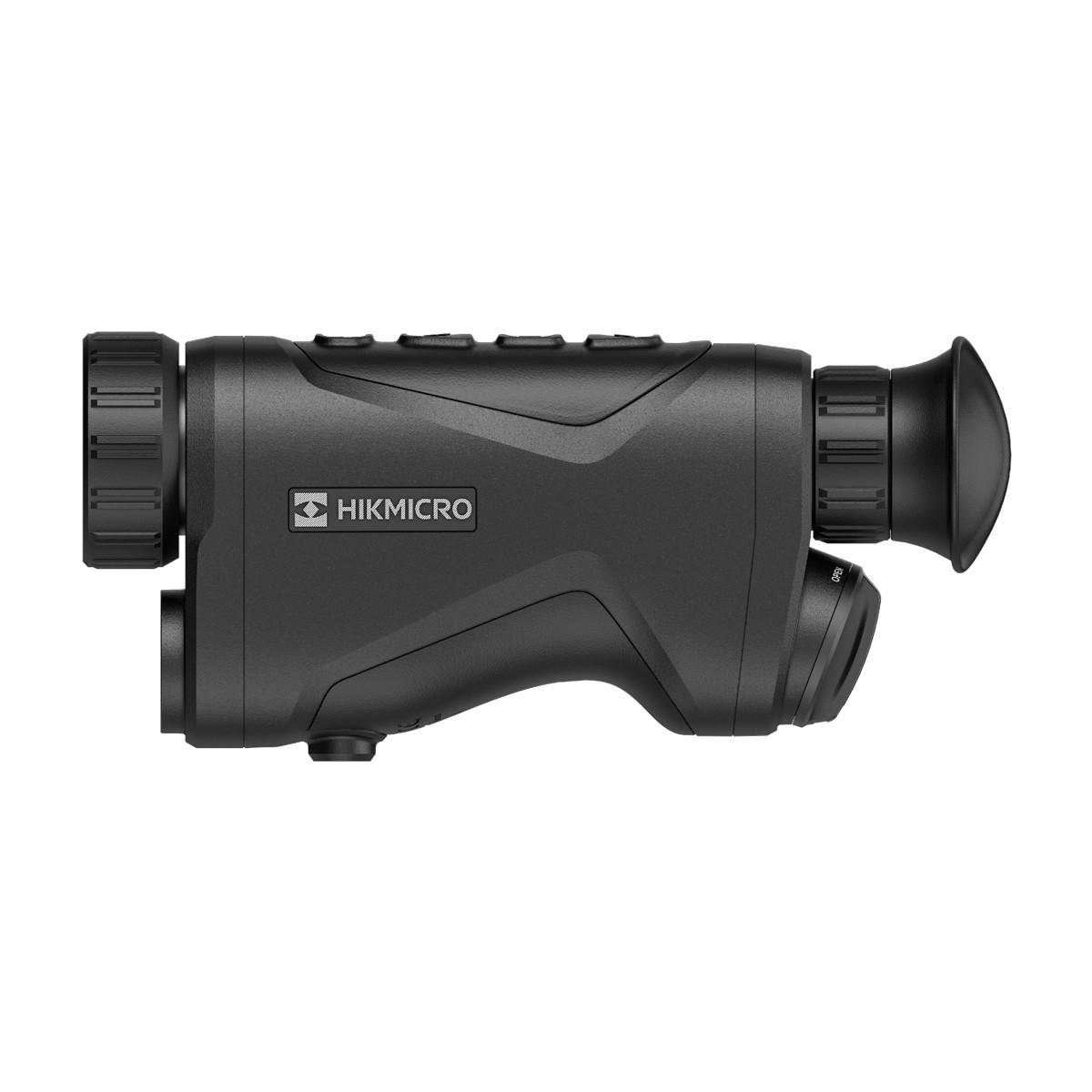

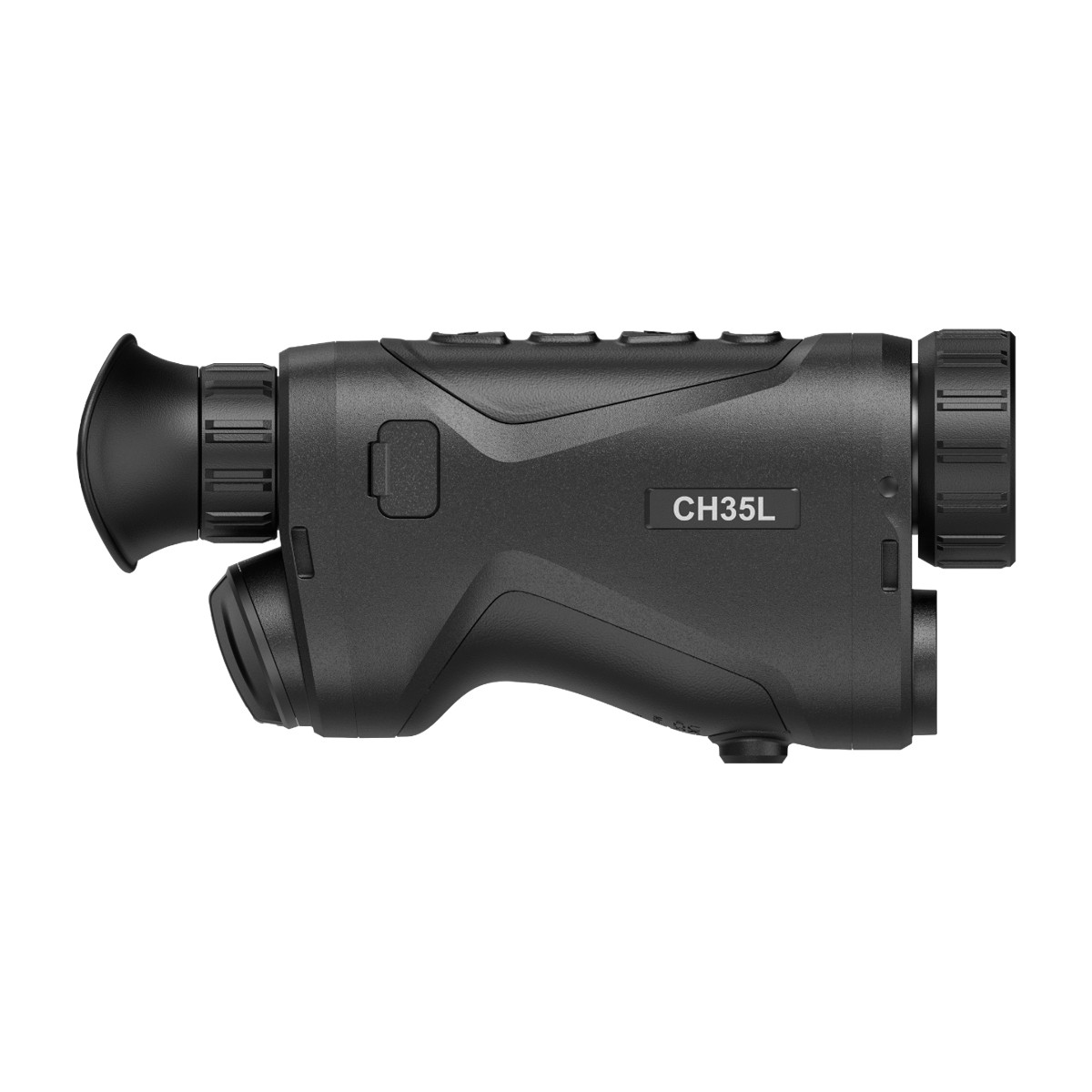

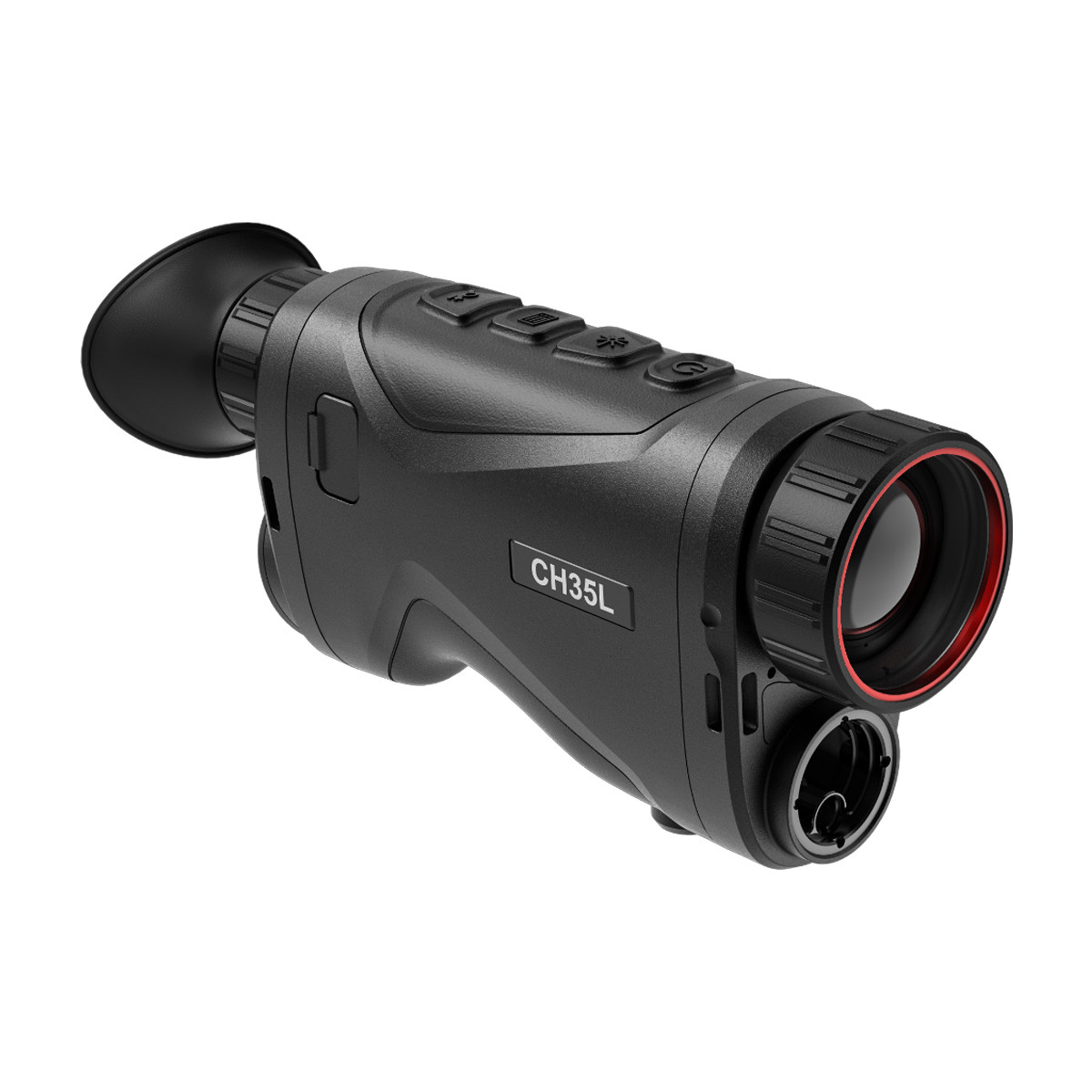

Condor LRF 35mm 384px
The HIKMICRO Condor CH35L Thermal Monocular is engineered for hunters, wildlife observers, and outdoor professionals who demand precision and clarity in all conditions. Featuring a <20mK NETD 384×288 VOx thermal sensor and a bright F1.0 35mm lens, it delivers ultra-clear images with exceptional detail recognition, even in challenging weather or lighting. With a 3.5x base magnification, a 13.1m field of view at 100m, and a detection range of up to 1,800 metres, it is ideal for scanning open ground and identifying targets at long distances. The integrated laser rangefinder ensures accurate distance measurements up to 1,000 metres with ±1m precision. Built with a robust magnesium alloy housing for durability, the CH35L also features an ergonomic, ambidextrous design for comfortable use. Powered by three rechargeable 18650 batteries for up to 6 hours of operation, it offers personalised image settings, built-in video and audio recording, app connectivity, and an intelligent auto screen-off function to conserve power.
Key Features:
- Ultra-clear thermal imaging: Detects fine details in varied weather and light conditions.
- Advanced image processing: HIKMICRO’s proprietary algorithms deliver optimised clarity and contrast.
- Long-range detection: Identify heat signatures up to 1,800 metres away.
- Accurate distance measurement: Class 1 905nm laser for precise ranging to 1,000m.
- Wide field of view: 13.1m horizontal coverage at 100m for efficient scanning.
- Ergonomic, ambidextrous design: Comfortable to hold for extended periods.
- Robust build: Magnesium alloy chassis combines strength with light weight.
- Replaceable rechargeable batteries: Three 18650 Li-ion cells provide extended observation time.
- Power-saving auto screen-off: Activates at specific tilt angles to conserve energy.
- Customisable visual settings: Adjust contrast, sharpness, and tone for user preference.
- Video & audio recording: Capture and store footage directly to built-in memory.
- App connectivity: Integrated hotspot allows remote viewing and control via HIKMICRO Sight app.
Specification
| Sensor | 384×288 px @ 12 µm |
| Objective Lens (Focal Length) | 35 mm |
| Detection Range (Human 1.8 × 0.5 m) | 1800 m |
| Sensor Type | VOx Uncooled Focal Plane Arrays |
| Resolution | 384×288 px |
| Pixel Pitch | 12 µm |
| Frame Rate | 50 Hz |
| NETD | < 20 mK |
| Objective Lens Aperture | F1.0 |
| Optical Magnification | 3.5x – 28x |
| Digital Magnification | 1x, 2x, 4x, 8x |
| Field of View | 7.5° × 5.6° |
| LRF Fitted | Yes |
| Maximum LRF Range | 1000 m |
| Measurement Accuracy | ±1 m |
| Display Type | 9.9 mm OLED |
| Display Resolution | 1024 × 768 px |
| Colour Palettes | White Hot, Black Hot, Red Hot, Fusion |
| Image Pro | Yes |
| Zoom Pro | Yes |
| Record Video | Yes |
| Capture Pictures | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Picture in Picture | Yes |
| Hot Tracking | Yes |
| Wi-Fi Hotspot | Yes |
| App Support | HIKMICRO Connect |
| Protection Rating | IP67 |
| Dust Protection | Protected against dust ingress |
| Water Protection | Protected against temporary water submersion |
| Operating Temperature | −30 °C to 55 °C |
| Dimensions | 184 × 53 × 87 mm |
| Weight | 0.4 kg |
| Battery Operating Time | 4.5 hours (WiFi & Hot Tracking off) |
| Charging Interface | Removable 18650 battery |
