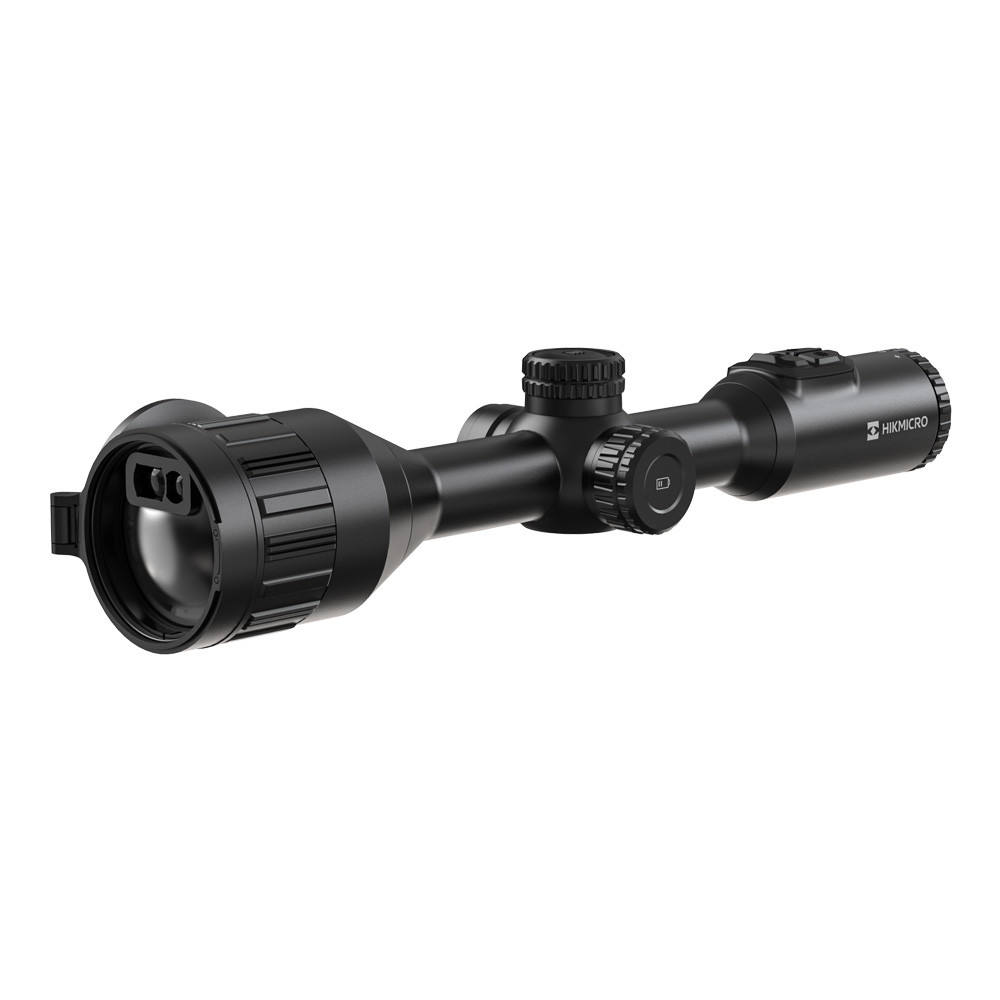

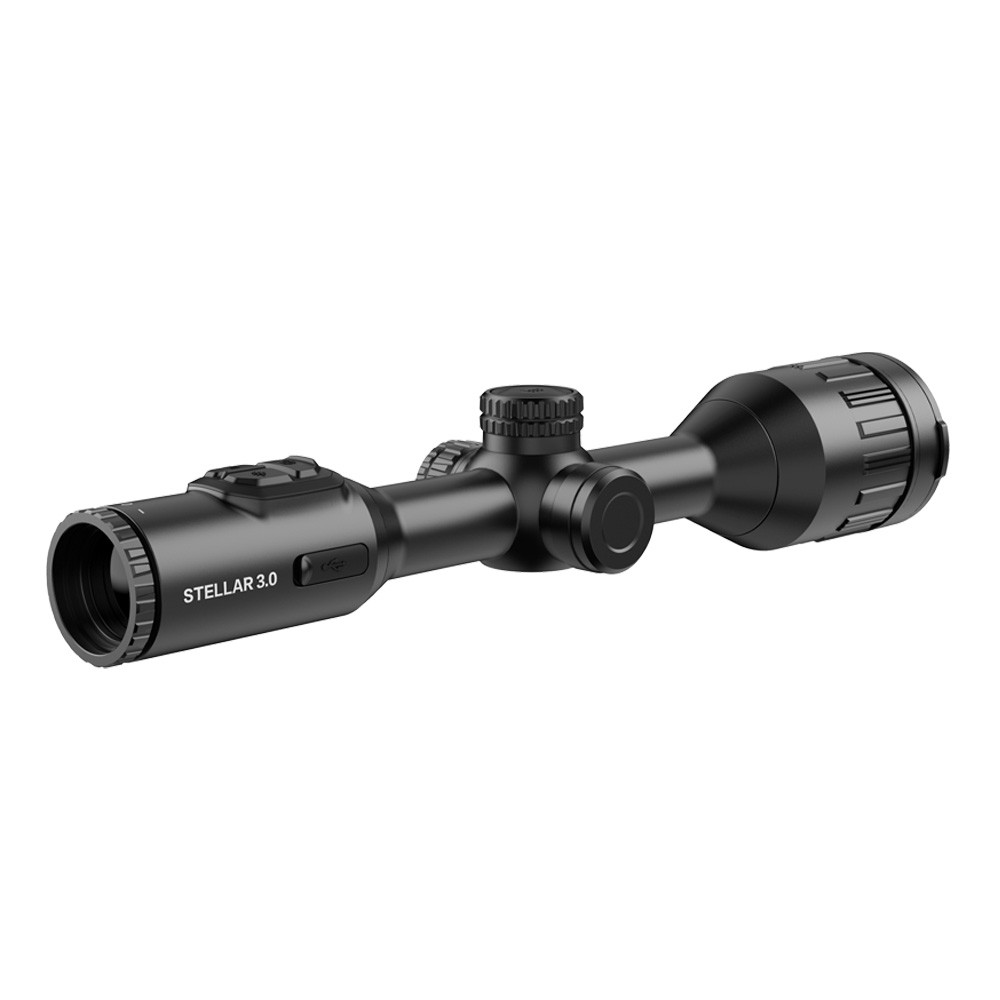

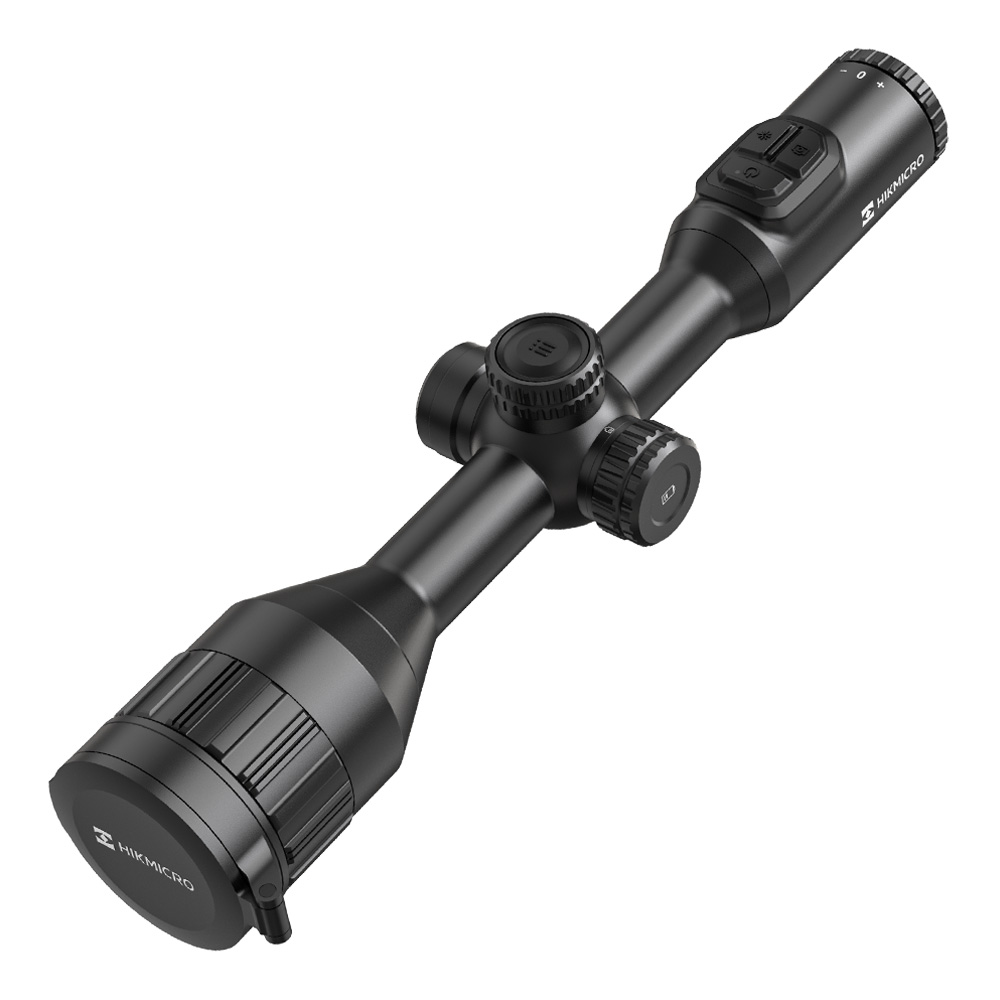

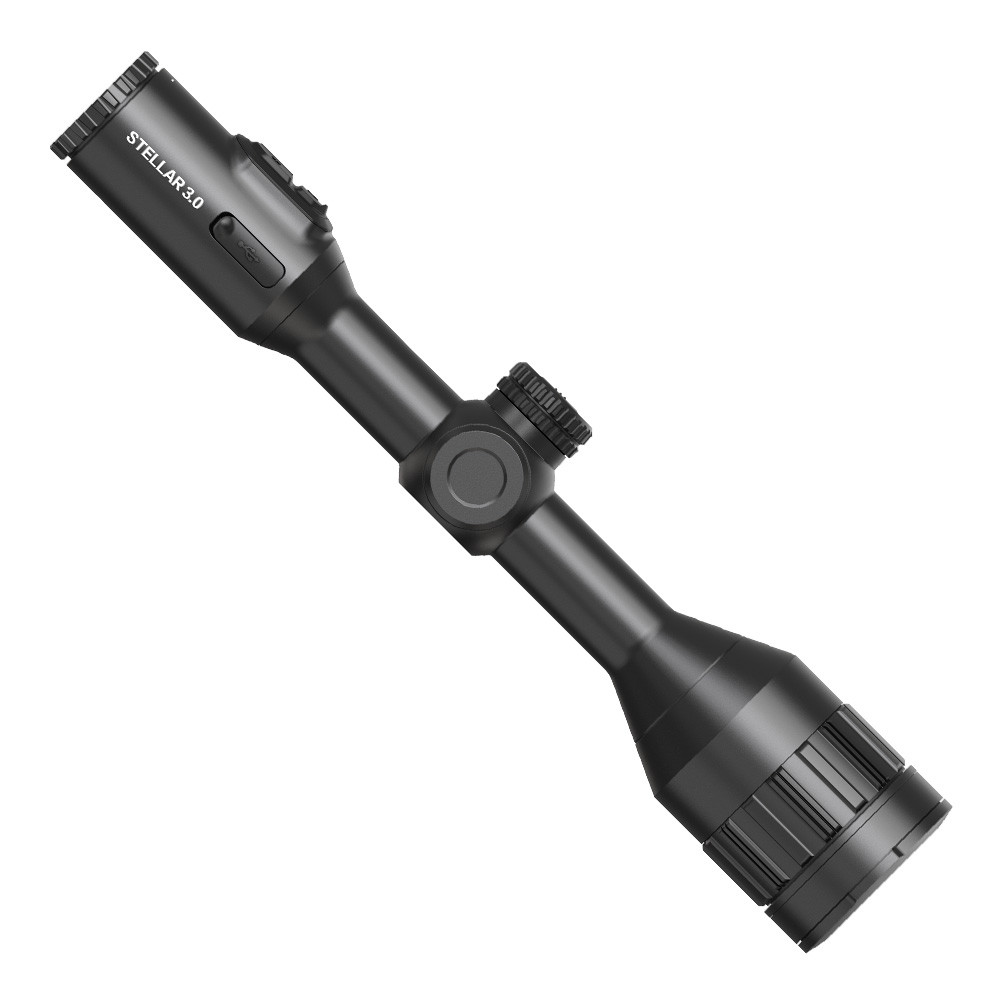

Stellar 3.0 50mm 640px with LRF
New from HikMicro, the Stellar SQ50L 3.0 35mm Thermal Riflescope. By utilising industry-leading sensor technology, alongside innovative software a truly great riflescope has been created!
This new thermal scope is equipped with a new thermal detector which means that when it is combined with the latest image processing algorithm (Image Pro 2.0) and the shutterless system; users can catch even the finest details no matter how brutal the weather conditions are or how little light there is!
Additionally by having a larger AMOLED display at a high resolution of 2560×2560 targets can be spotted faster and focused on at improved levels of accuracy. This is aided by a built-in 1000m Laser Rangefinder (LRF) and ballistic calculations that help to make each shot count!
Key Features:
- A 640×512 resolution at 12μm thermal detector
- High sensitivity thermal module NETD<15 mK (25C, F = 1.0)
- 50mm, F1.0 lens with detection range up to 2600m
- 2560 x 2560 resolution 1.03 Inch Oled Display
- HIKMICRO Shutterless Image System (HSIS)
- Built-In Laser Rangefinder with distance up to 1000m with ballistic calculations
- Rechargeable internal batteries and external battery allowing for 9 hours of continuous operation
- Highly shock resistant up to 1000g/0.4ms
Specifications
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max Resolution | 640 × 512 |
| Frame Rate | 50Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 15 mK (25°C, F = 1.0) |
| Lens (Focal Length) | 50mm, F1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 2600 m |
| Minimum Focusing Distance | 5 m |
| Magnification | 3.6× – 26.6× (1× step, continuous zoom) |
| Field of View (HxV) | 8.8 × 7.0° / 15.4 m × 12.3 m at 100 m |
| Image Display | |
| Display | 2560 × 2560, 1.03-inch OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Exit Pupil | 6 mm |
| Eye Relief | 45 mm |
| Diopter Range | −5D to +3D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |
| Zoom Pro | Yes |
| Image Pro 2.0 | Yes |
| HSIS | Yes (HIKMICRO Shutterless Image System) |
| System | |
| Video Recording | On-board |
| Snapshot Capture | Yes |
| Audio Recording | Yes |
| Recoil-activation Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Zeroing Profiles | 5 |
| Max Recoil | 1000 g / 0.4 ms |
| Freeze Zeroing | Yes |
| Local Album | Yes |
| Power Supply | |
| Battery Type | 2× Internal rechargeable lithium batteries, 1× external replaceable 18650 (optional) |
| Battery Operating Time | 9 hours continuous (−20°C, Zoom Pro, LRF ON) |
| Power Supply | 5V DC / 2A, USB Type-C, Quick Charge 3.0 |
| General | |
| Mounting | Standard 30 mm |
| IP Rating | IP67 |
| Dimensions | 422.5 × 88.4 × 74.5 mm |
| Weight | 860 g (without external battery) |
| Working Temperature | −30°C to 55°C (−22°F to 131°F) |
| Center Height | 36 mm |
| Laser Rangefinder | |
| Laser Safety Class | Class 1 |
| Wavelength | 905 nm |
| Maximum Measuring Range | 1000 m |
| Measurement Accuracy | ±1 m |
| Minimum Measuring Range | 10 m |
