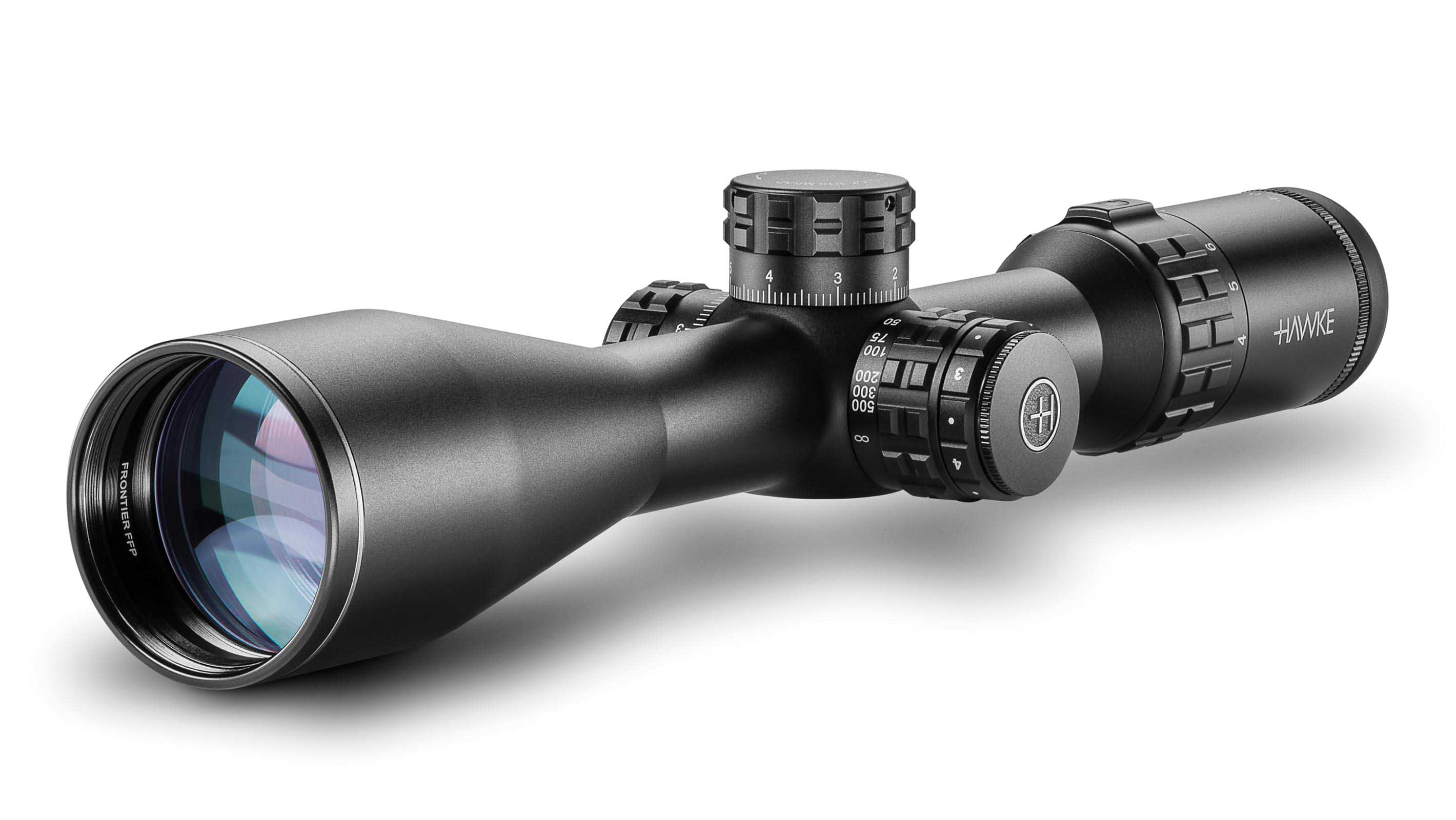

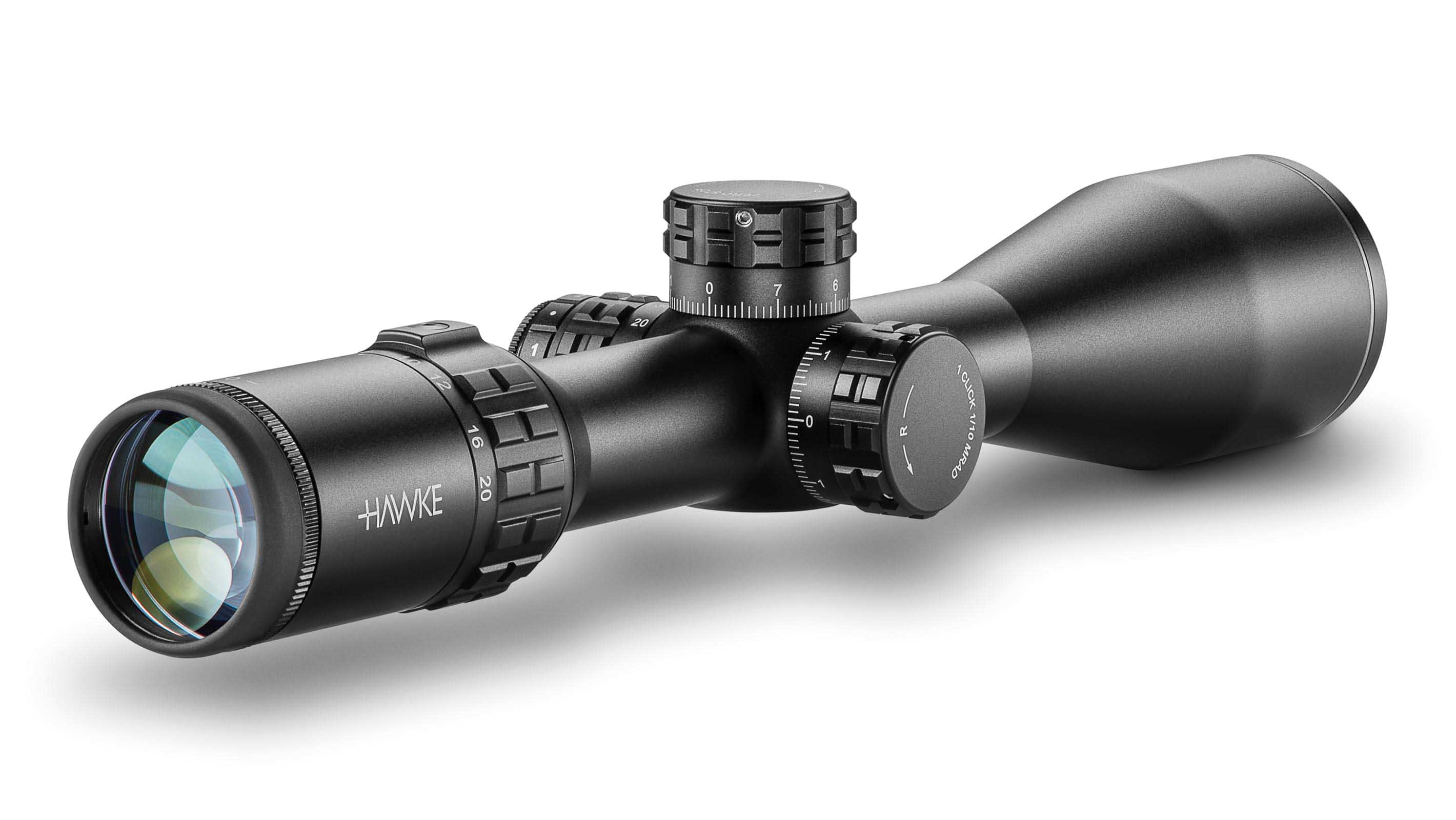

Frontier 30 FFP 4-20×50 Mil Pro
All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission.
Supreme accuracy for rifle shooting, driven and hunting applications.
FFP Mil Pro (20x) Reticle
The FFP Mil Pro reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With half Mil spaced markings extending out to 10 Mil of holdover, the FFP Mil Pro is a versatile reticle that provides aim points no matter how extreme the distance.
All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
The FFP Mil Pro 20x has additional 1/4 Mil aim points on the center section of the reticle to give even greater precision.
Key Features:
- Patented Exposed Zero Lock ‘n’ Stop elevation turret
- First Focal Plane (FFP)
- 30mm Mono-tube chassis
- Side Focus
- Illumination
- Wide Angle FOV
- High volume eyebox
- 100mm eye relief
- Multi-LED high intensity reticle
- High grade, low dispersion Crown glass
- 21 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
- Supplied with Professional metal flip-up covers
Specification
| Optical System | System H7 |
| Scope Tube | 30mm |
| Magnification | 4 – 20x |
| Objective Lens | 50mm |
| Reticle | FFP Mil Pro (20x) |
| Illumination | 6 Levels (Red) |
| Illumination Control | Stepped Rheostat with Off Positions In-between |
| Parallax | Side Focus |
| Focal Plane | FFP (First Focal Plane) |
| Lens Coating | Fully Multi-Coated – 21 Layers |
| Field of View | 28.2 – 5.7ft @100yds / 9.4 – 1.9m @100m |
| Field of View (°) | 5.4 – 1.1 |
| Eye Relief | 4in / 102mm |
| PX/Focus | 15yds – ∞ / 14m – ∞ |
| Exit Pupil | 0.49 – 0.1″ / 12.5 – 2.5mm |
| Click Value | 1/10 MRAD |
| Turret Type (Elevation) | Zero Lock ‘n’ Stop, Exposed, Locking, Resettable |
| Elevation Turret Clicks (max) | 23 MRAD |
| Turret Type (Windage) | Exposed, Locking, Resettable |
| Windage Turret Clicks (max) | 23 MRAD |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 13.2in / 336mm |
| Weight | 22.2oz / 630g |
