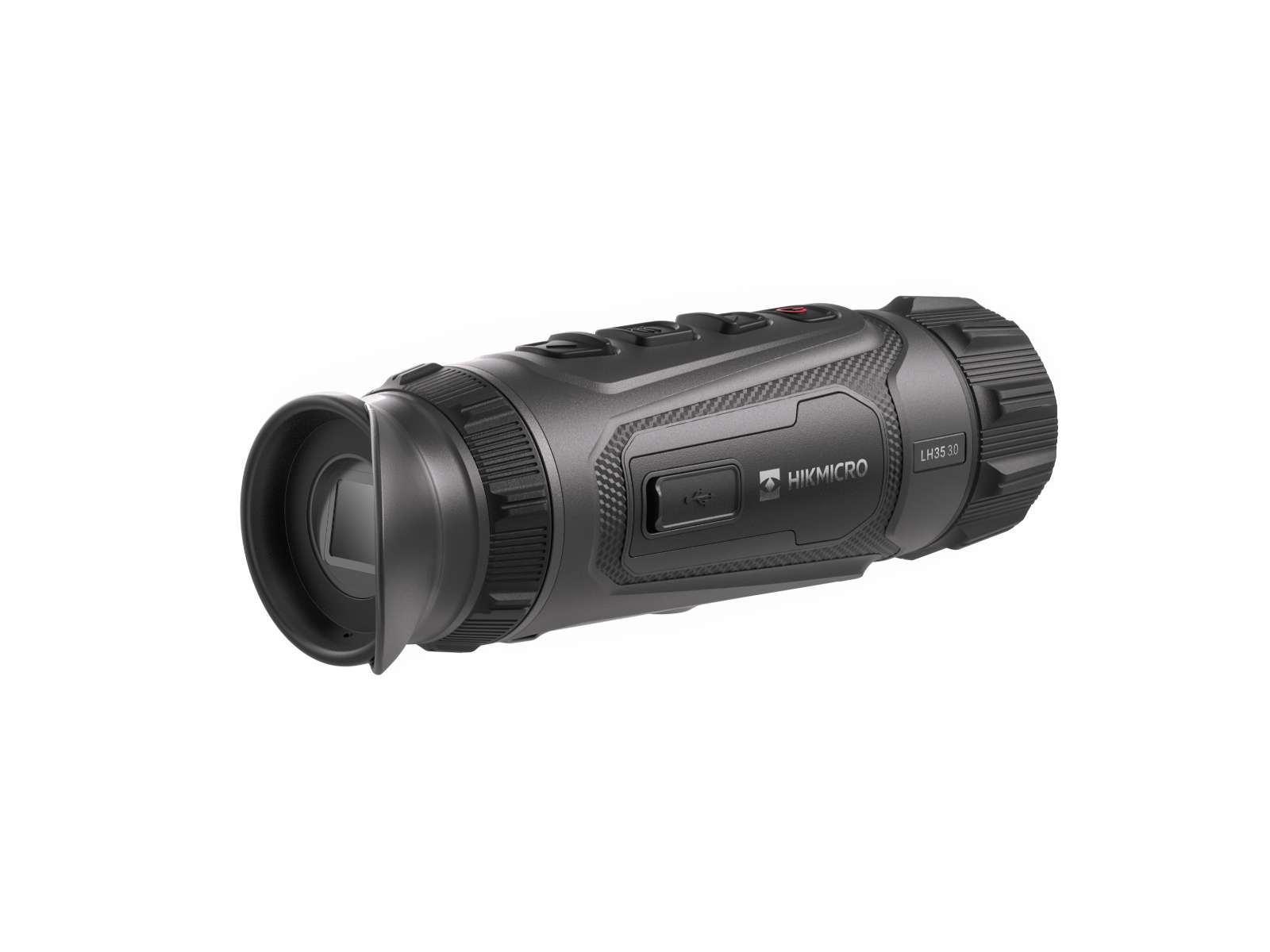

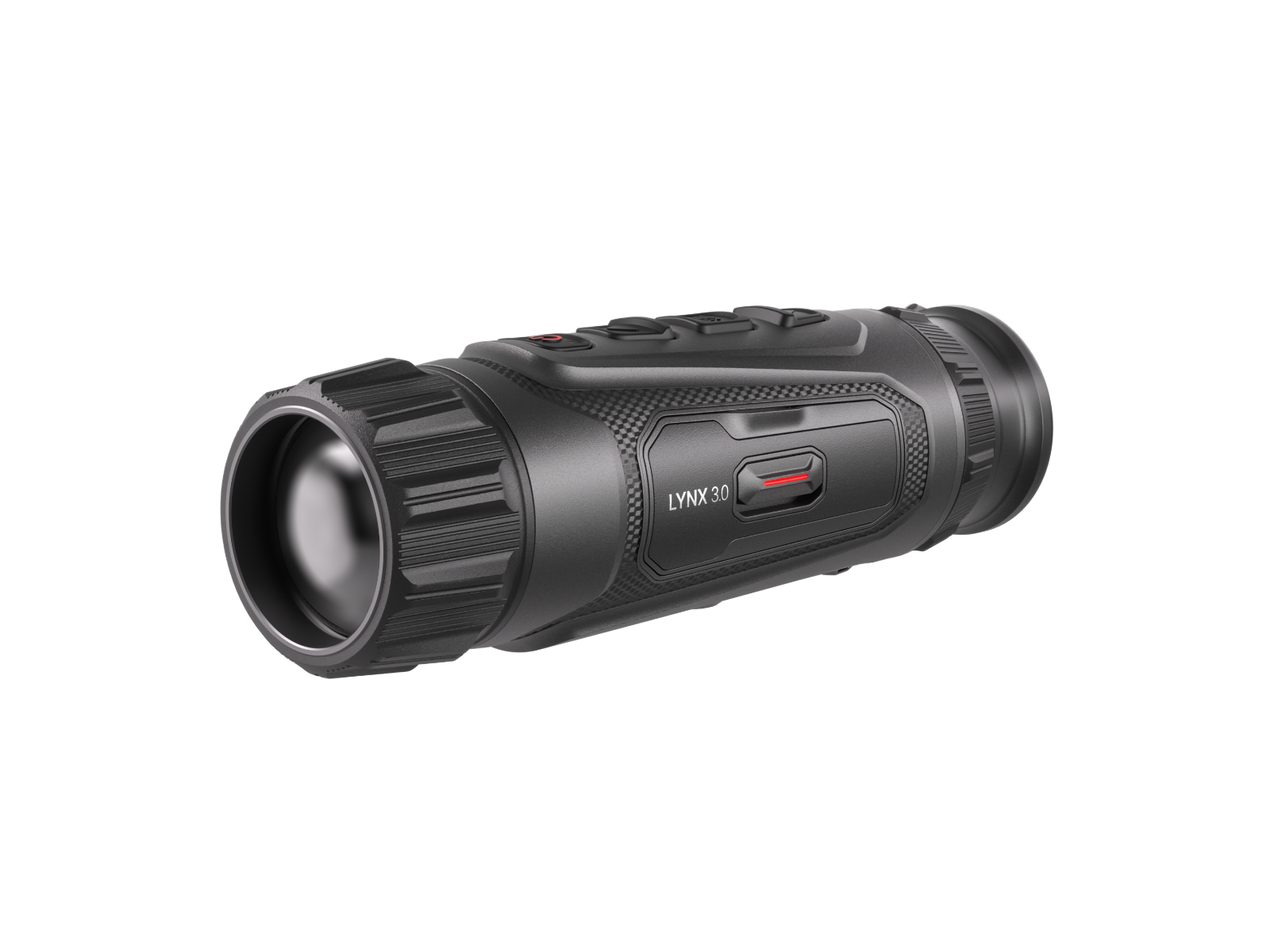

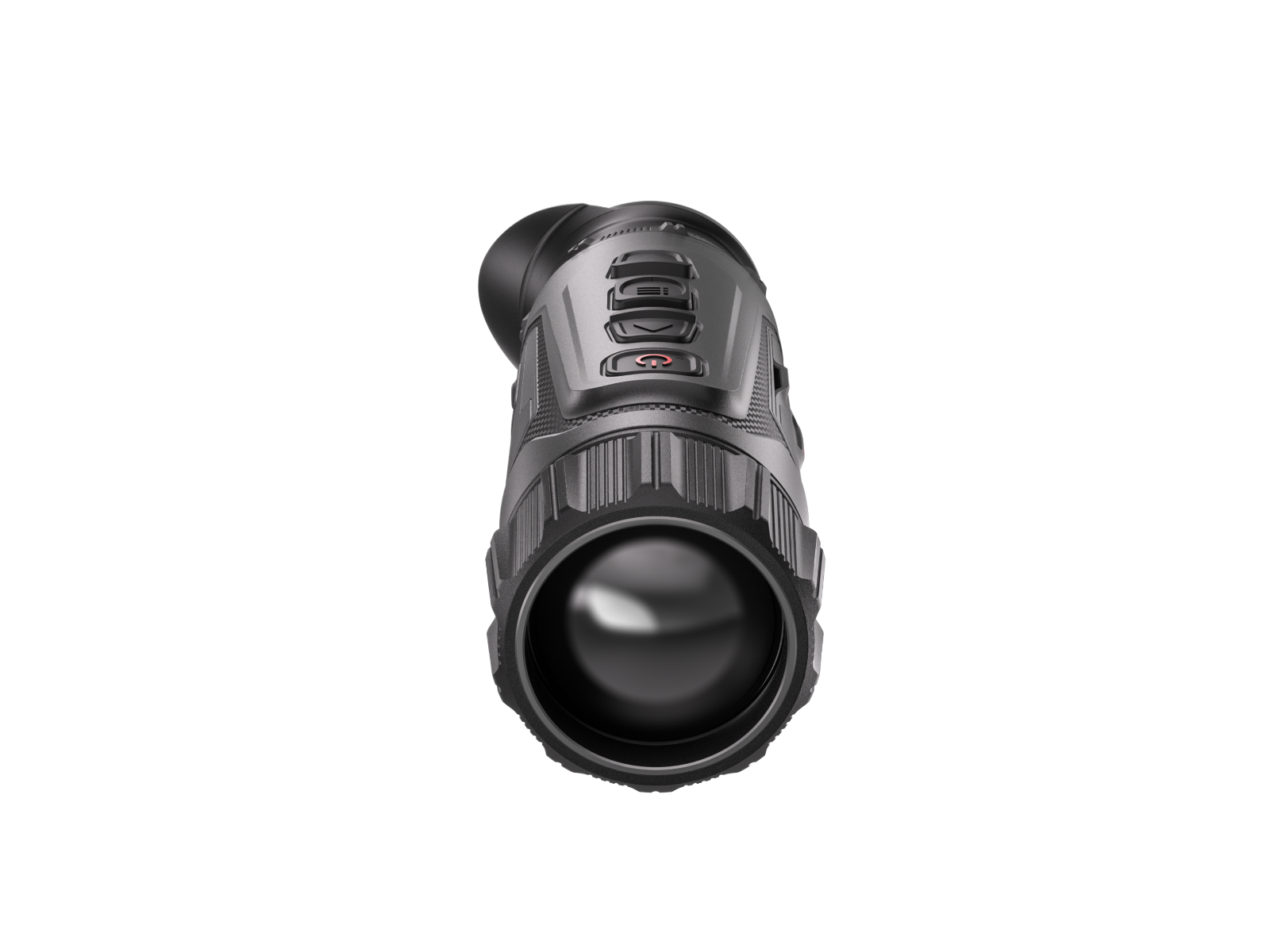

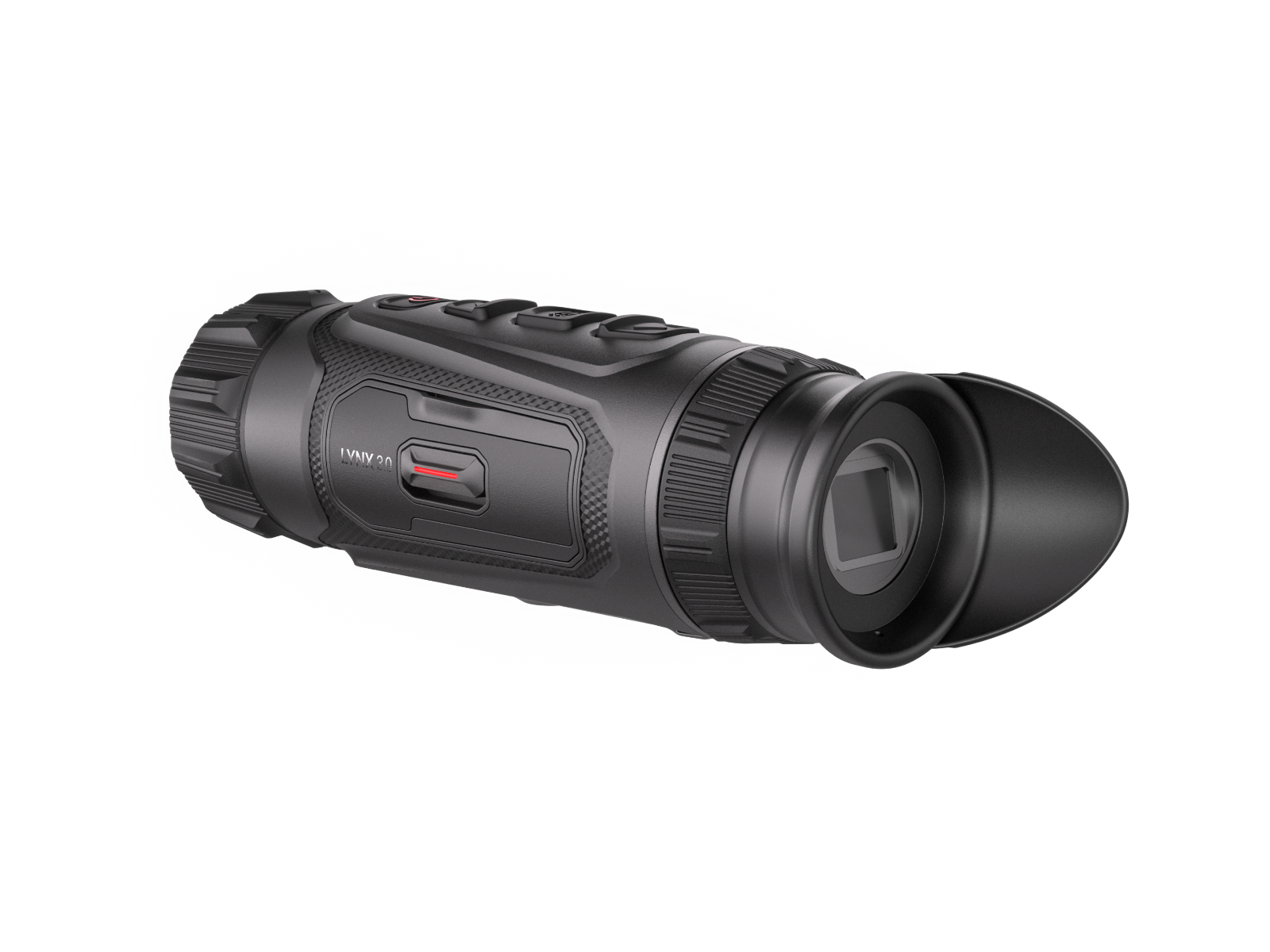

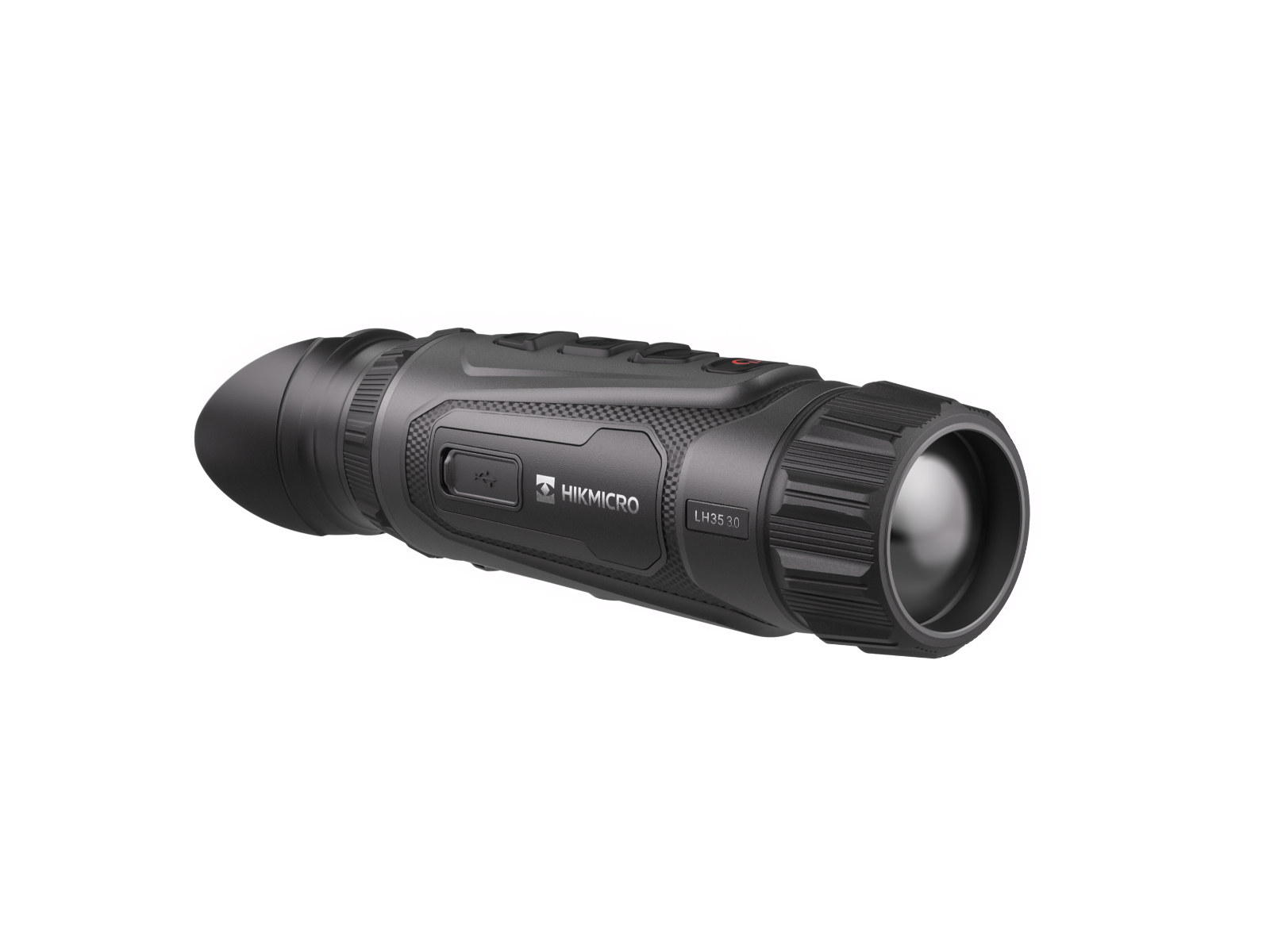

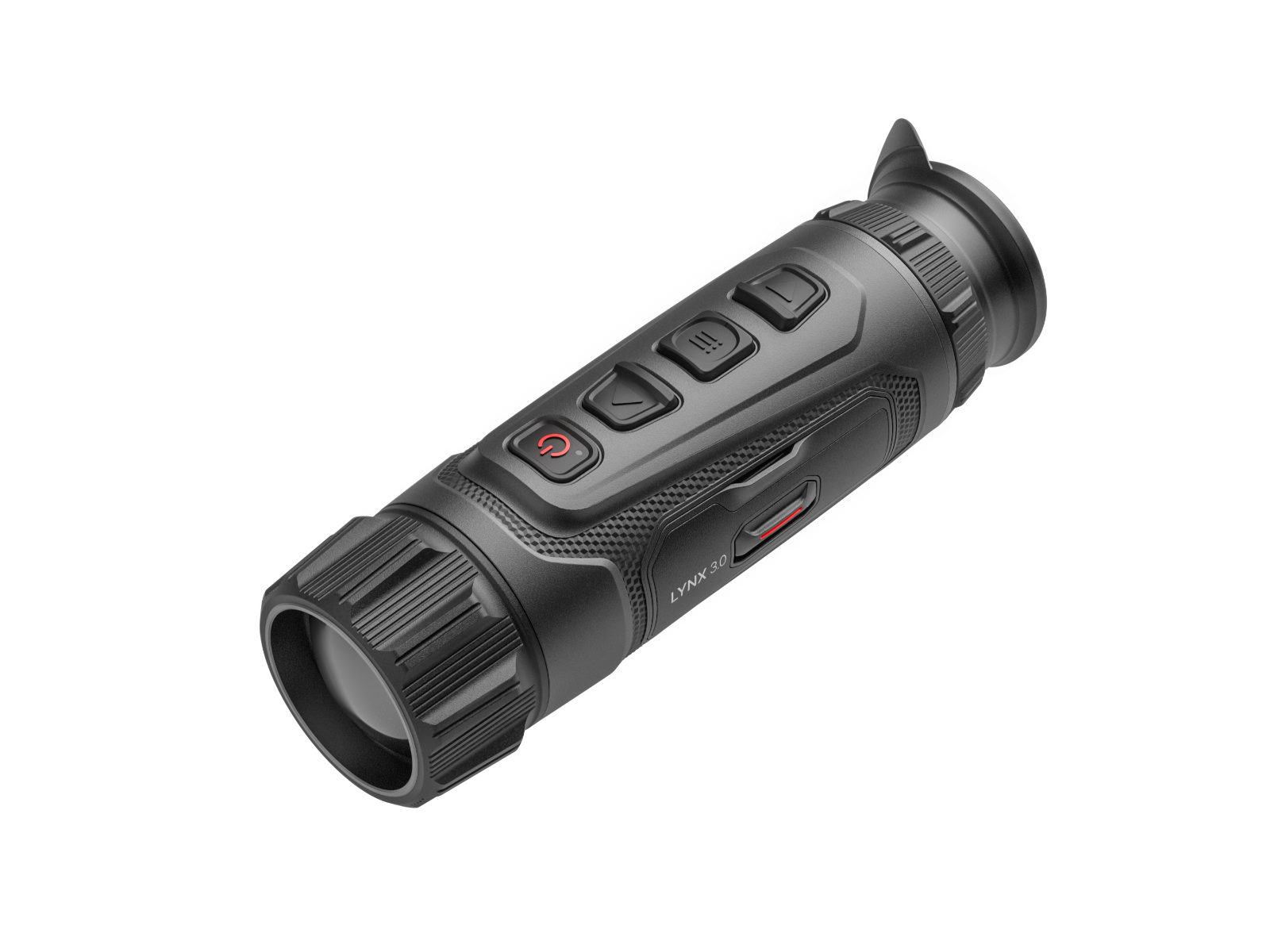

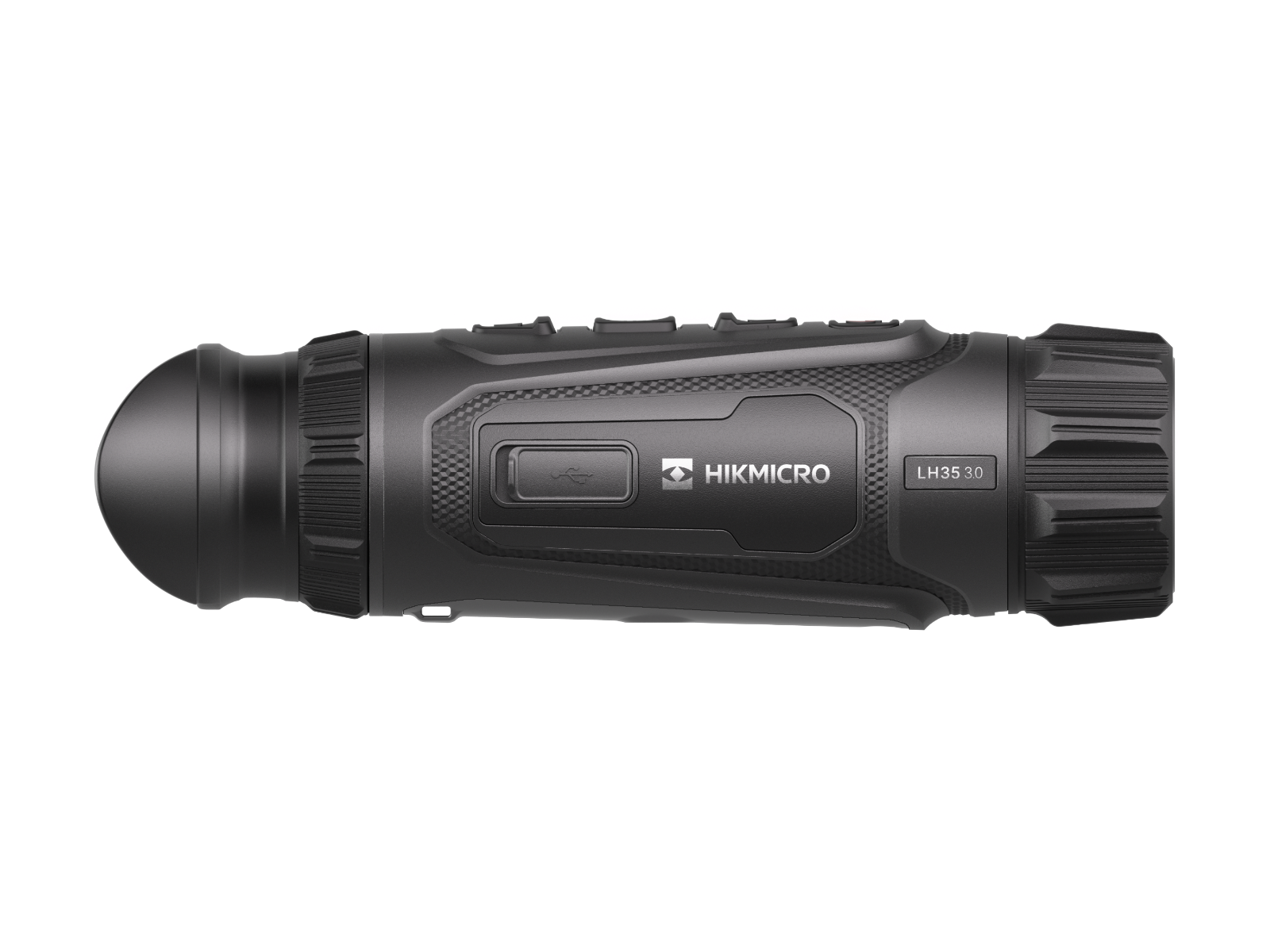

Lynx 3.0 35mm 384px Sub 15mk
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LH35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 384×288 thermal detector and a 35mm F1.0 lens, it delivers 3.4x base magnification, a 7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.
Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LH35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.
At 354.5 grams, the LH35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.
Key Features:
- 384×288 thermal detector with NETD < 15 mK
- 35mm F1.0 lens with 1800m detection range
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- HIKMICRO Shutterless Image System (HSIS)
- 0.49” 1920×1080 AMOLED display
- Up to 4.5 hours’ operation at -20°C
- Lightweight, pocket-sized 354.5g design
Specification
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 15 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 35 mm, F1.0 |
| Focus Mode | Focus Wheel |
| Min. Focusing Distance | 3.5 m |
| Magnification | 3.4× – 27.2× (8×) |
| Field of View (H × V) | 7.5° × 4.6° / 13.1 m × 8.0 m @100 m |
| Detection Range | 1800 m |
| Display | 1920 × 1080, 0.49 inch, AMOLED |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Exit Pupil | 6 mm |
| Eye Relief | 20 mm |
| Diopter (Range) | −5 D to +3 D |
| Tone Adjustment | Cold, Warm |
| Zoom Pro | Yes |
| HSIS (HIKMICRO Shutterless Image System) | Yes |
| Image Pro 3.0 | Yes |
| Sync Pro | Yes |
| Battery Type | Replaceable and rechargeable 18650 battery |
| Protection Level | IP67 |
| Weight | 354.5 g (with battery) |
