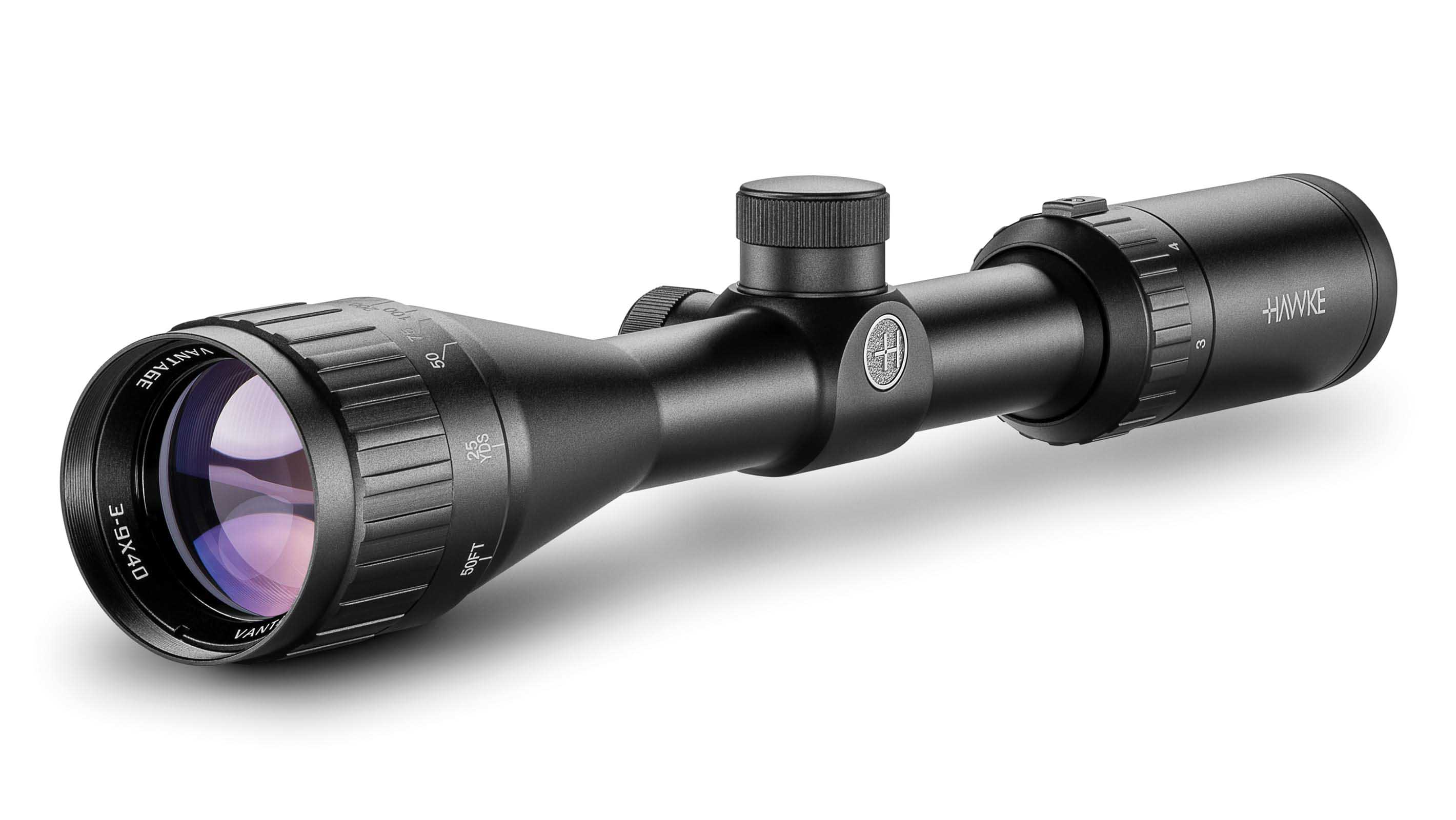

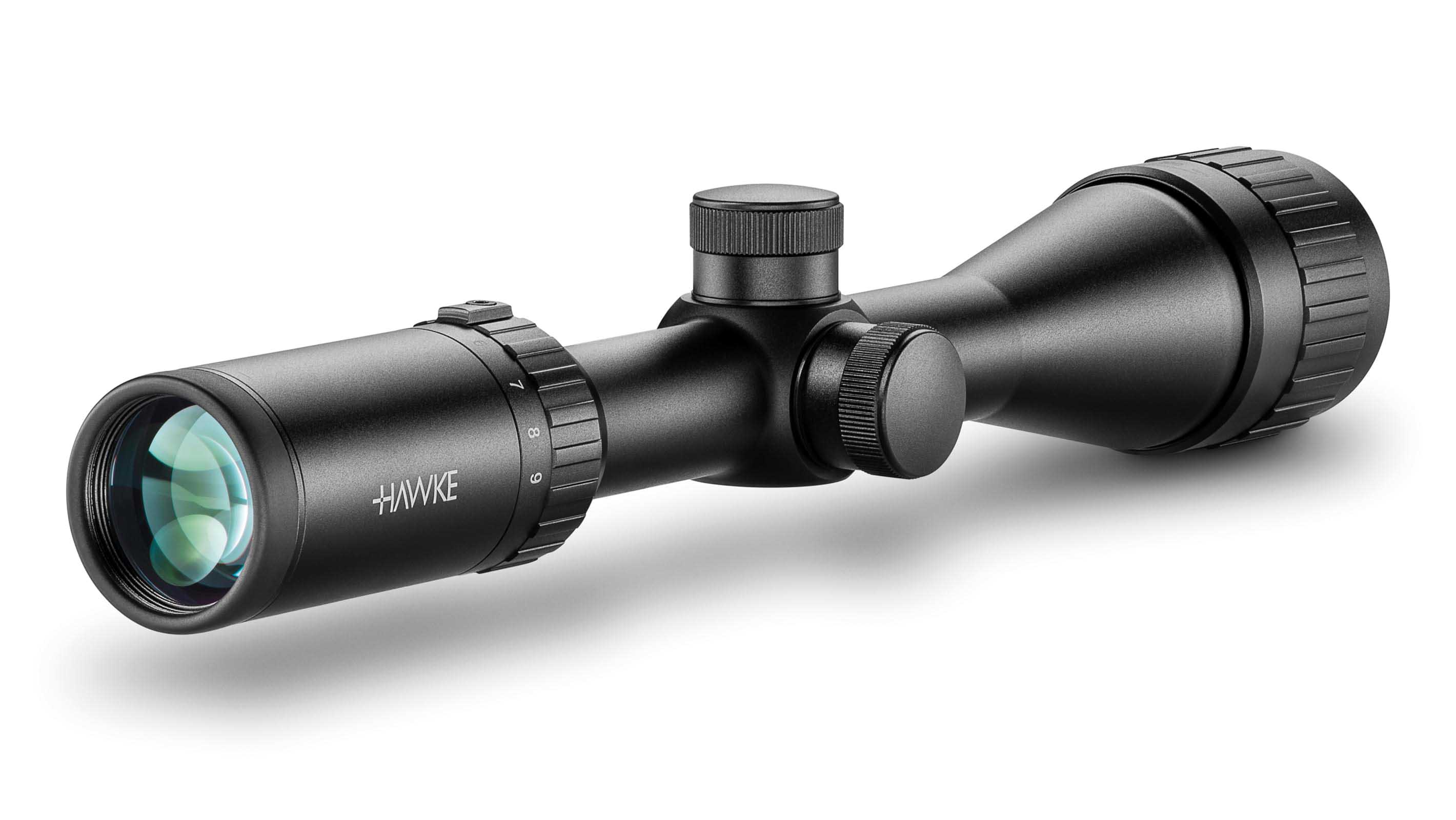

Vantage 3-9×40 AO 30/30 Duplex
An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
30/30 Duplex Reticle
A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification
Key Features:
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Adjustable objective for parallax correction
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specification
| Optical System | System H2 |
| Scope Tube | 1 Inch |
| Magnification | 3 – 9x |
| Objective Lens | 40mm |
| Reticle | 30/30 Duplex |
| Parallax | Adjustable Objective |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated – 11 Layers |
| Field of View | 39 – 12.7 ft @100 yds / 13 – 4.2 m @100 m |
| Field of View (°) | 7.4 – 2.4 |
| Eye Relief | 3.5 in / 90 mm |
| PX/Focus (Error free from) | 10 yds – ∞ / 9 m – ∞ |
| Exit Pupil | 0.52 – 0.17 in / 13.3 – 4.4 mm |
| Click Value | 1⁄4 MOA |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 100 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 100 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 12.7 in / 322 mm |
| Weight | 17 oz / 482 g |
